Lt simo motor T series synchronous are of horizontal. Their cooling mode can be open self-ventilation, duct or half-duct ventilation, or enclose self-circulating ventilation. T series motors can have one shaft end or two shaft end as well. They rotate in CCW direction as see from the ring collector. The rotation direction can be changed, but the fan should be changed accordingly.

Send Inquiry

Product Description

Product Details
T series synchronous motors are horizontal structures designed for high efficiency and stable operation. Their cooling mode options include open self-ventilation, duct or half-duct ventilation, and enclosed self-circulating ventilation. Equipped with one or two shaft ends, they rotate in a counter-clockwise (CCW) direction as viewed from the ring collector. The rotation direction can be customized with corresponding fan adjustments.
Integral Frame
Constructed by welding robust steel plates. The frame and the plain bearing housing are securely fixed on the base plate.
Stator Iron Core
Laminated with high-grade 0.5mm silicon steel fan-shaped laminations. Both sides are treated with insulating varnish, secured onto the frame by tightening screws or dovetail ribs.
Stator Coil
Utilizes a two-layer lap winding design with Class B/F insulation to prevent corona discharge. The coil ends are securely wrapped and fully varnished.
Magnetic Coil
Wound using high-conductivity flat copper wire, processed with high-temperature Class B/F insulation.
Bearing & Lubrication
Composed of cast iron plain bearing housings and alloy-casted bearing liners. Features self-lubricating oiling or compound lubrication systems.
Brush & Collector Ring
Assembled collector ring structure. Brushes are housed in constant voltage brush boxes, interconnected by conducting plates and mounted on the bearing side.
Excitation Mode: T series synchronous electrical machines are excited by high-performance thyristor exciting units.
Basic Parameters
Parameter Specification Details
Frame Size 1180 ~ 1730 mm
Power Range 40 ~ 10,000 kW
Voltage 3.3 KV ~ 13 KV
No. of Poles 10P / 12P / 14P / 16P / 4P / 8P / 20P / 24P
Protection Grade IP20
Cooling Method IC01 / IC37
Insulation Class F
Service Duty S1 (Continuous)
Ambient Temperature -15 °C ~ +40 °C
Environment Indoor installation
Altitude Limit ≤ 1000 meters
Bearing Brands Chinese standard / SKF / FAG / NSK options available
Mounting Type IM7311
Temperature Rise Limit 80K (B)
Painting Color As per client requirements
Motor Type Designation
Model: T1000-10/1430

T: Synchronous Motor

1000: Rated Power (1000 kW)

10: Number of Poles

1430: Stator core outer diameter (1430 mm)

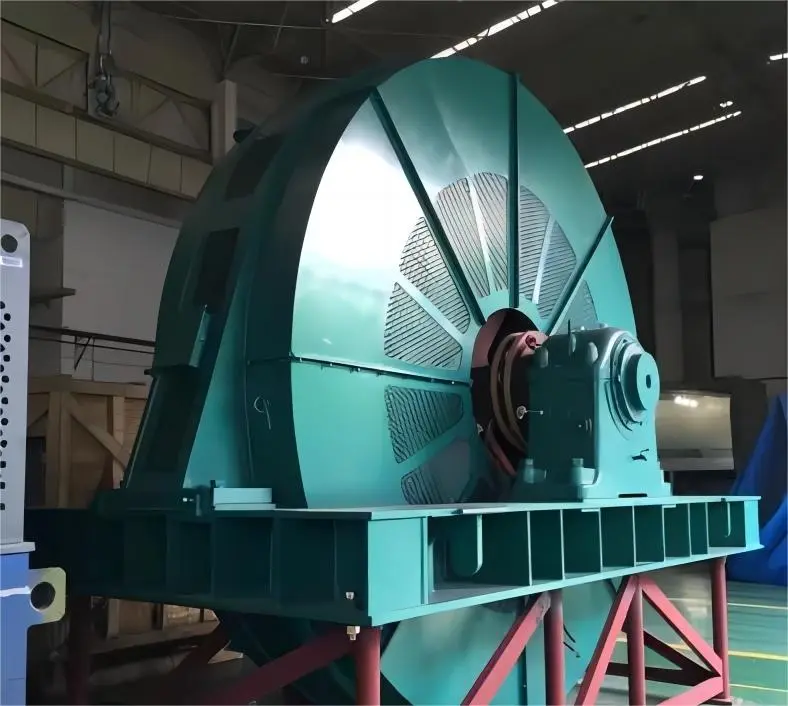

T series Three-phase synchronous motorp8c
Frequently Asked Questions
What are the cooling configuration options for T series synchronous motors?
They can be configured with open self-ventilation, duct or half-duct ventilation, or enclosed self-circulating ventilation depending on operational environments.
What is the range of rated power and voltage supported?
The series covers a wide performance spectrum, with rated power from 40 kW to 10,000 kW and voltage ratings from 3.3 KV up to 13 KV.
What insulation materials are utilized in the construction?
The stator core and magnetic coils feature high-efficiency Class B or Class F insulation systems, designed to handle rigorous operational temperatures and prevent corona degradation.
Which bearing options are available for these synchronous motors?
The standard setup consists of cast iron plain bearing housings with alloy-lined sleeves. Depending on user specifications, high-grade bearings from SKF, FAG, NSK, or domestic Chinese options can be fitted.
How is the excitation system powered?
Excitation is driven by custom-matched thyristor exciting units which ensure stable, responsive control over the synchronous motor's power factor and overall performance.
