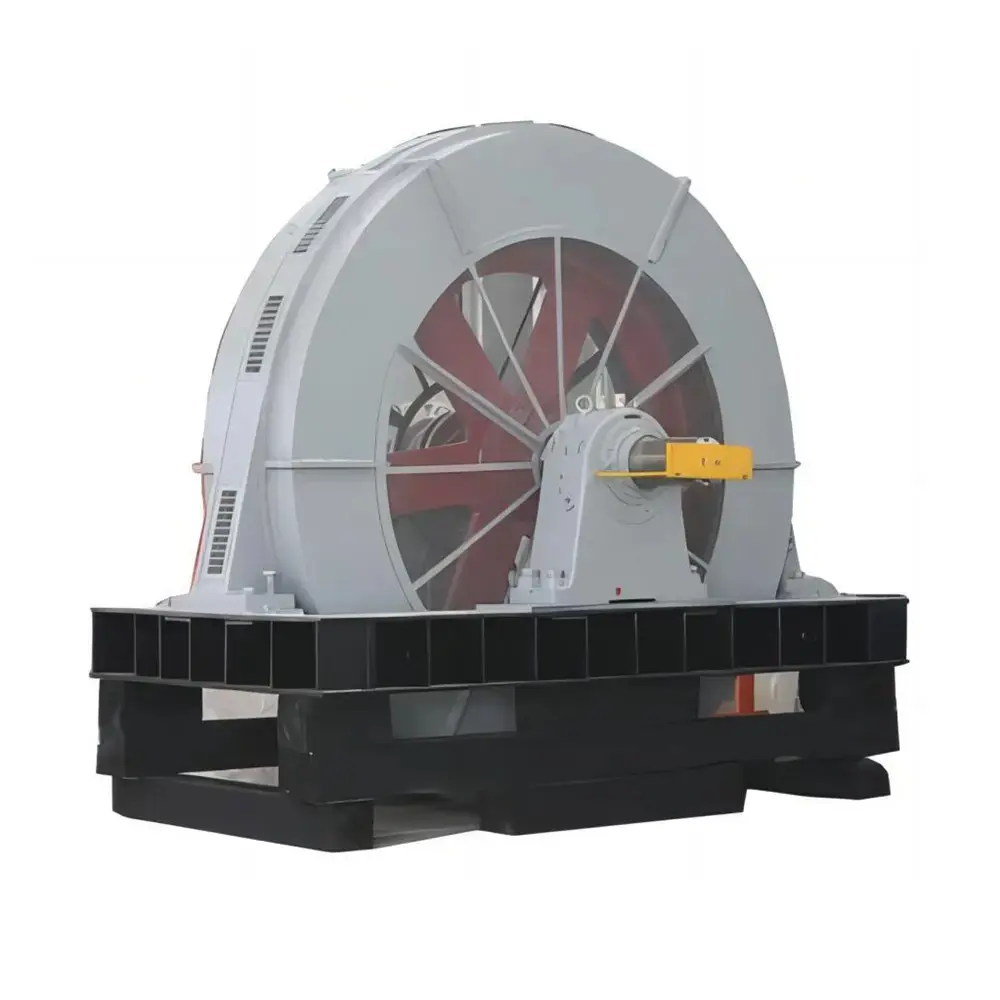

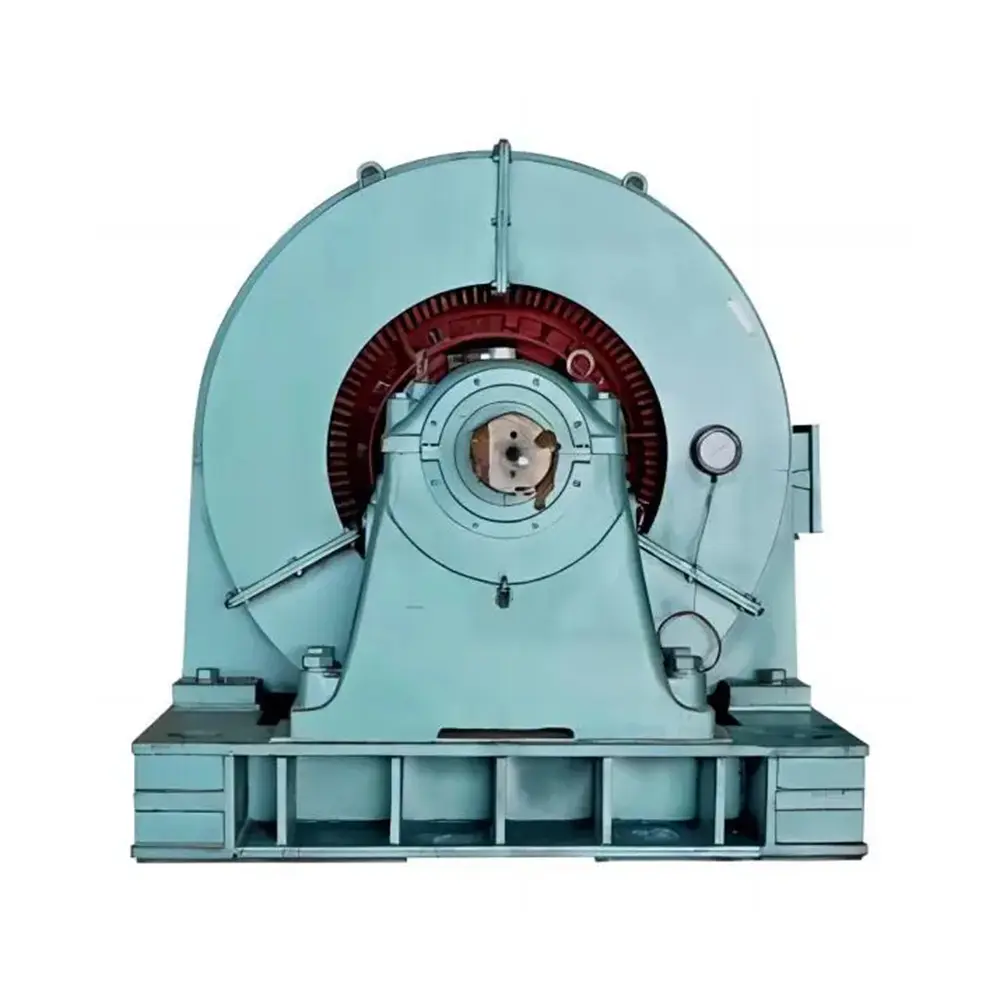

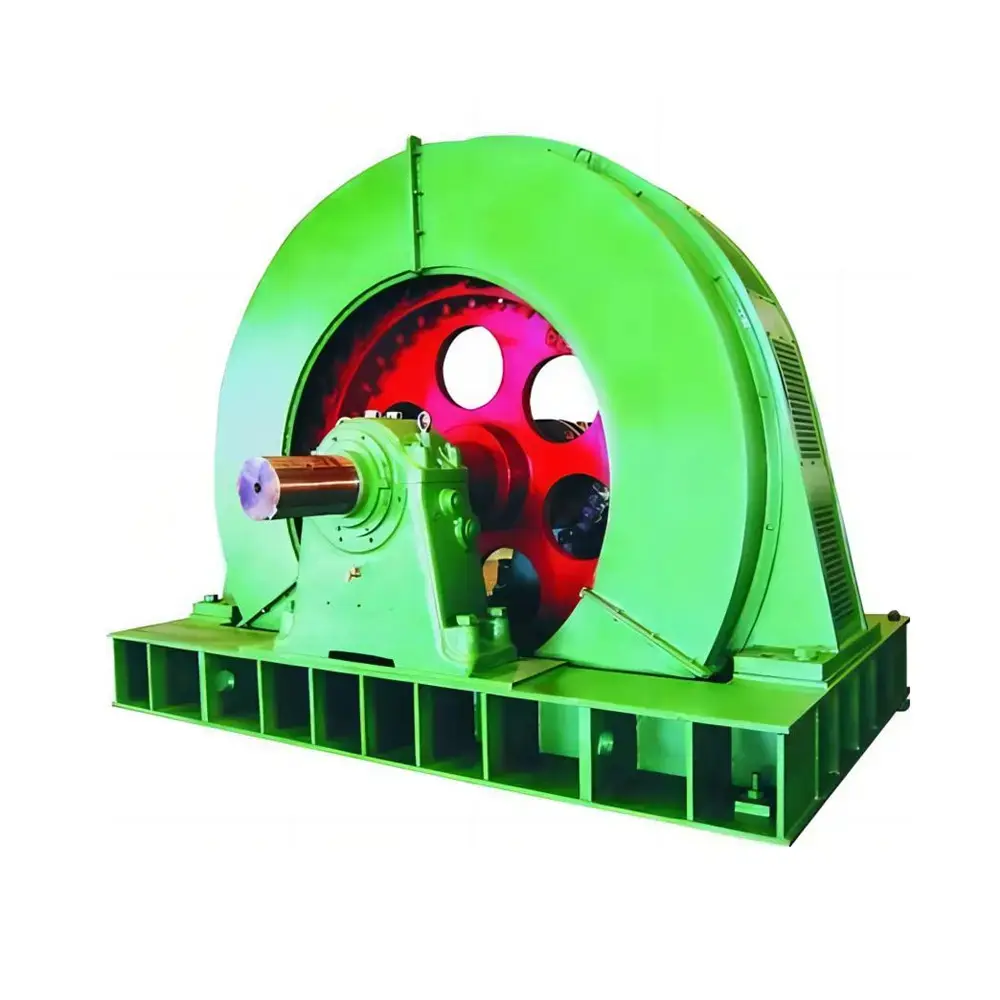

Custom TDMK series motor AC three phase synchronous motor specially for mine milling Supplier, Suppliers
LT SIMO Motor TDMK series large AC three-phase synchronous motors for mining mills are the core driving equipment in the mining and cement industries, and are also the main products of our company.
TDMK series motors are widely used in mining and cement industries due to their large starting torque. They are mainly used to drive low-speed, large-capacity equipment such as grate ball mills, rod mills, and coal mills. The starting mode of TDMK series motors is full-voltage starting. When the power supply is insufficient, the voltage can be appropriately reduced to start, and the starting current and starting torque will be reduced accordingly.
Basic Parameters
Frame size
2150~3250mm
Power
280~2000kW
Voltage
3.3~13kv
No.of Poles
32P/36P/40P
Protection Grade
IP00/IP23
Cooling Method
IC01
Insulation
F
Service
S1
Ambient temperature
-15 °C ~ + 40 °C
Environment
indoors
Altitude
≤1000m
Bearing
Chinese/SKF/FAG/NSK available
Mounting
IM7311
Temperature rise limit
80K(B)
Painting
As per client requirements
Model Reference
TDMK(TM) 400-32/2150
T- Synchronous Motor
D- Motor
K(TM)- (mine)
400- Rated Power(kW)
32- No of Poles
2150- Stator core outer diameter(mm)

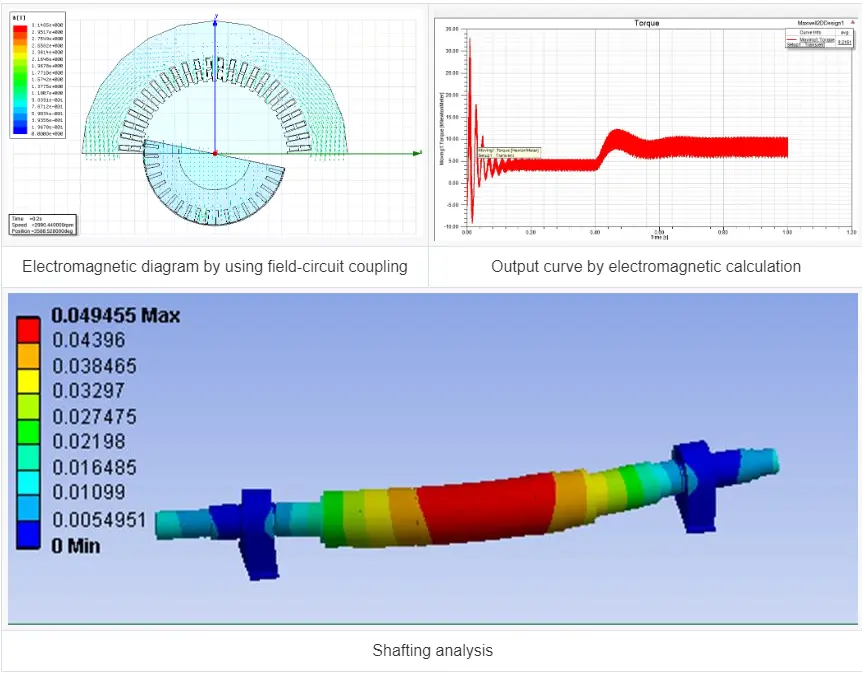

Type Introduction
Frequently Asked Questions (FAQ)
What are the primary applications of TDMK series motors?
TDMK series motors are widely used in mining and cement industries. They are primarily designed to drive low-speed, large-capacity industrial equipment such as grate ball mills, rod mills, and coal mills.
What is the starting mode of TDMK series motors?
The standard starting mode is full-voltage starting. If the power supply capacity is insufficient, the starting voltage can be reduced appropriately, though the starting current and starting torque will be reduced accordingly.
What power and voltage options are available for TDMK motors?
TDMK series motors support a power range of 280kW to 2000kW and operate on rated voltages ranging from 3.3kV to 13kV.
What brands of bearings are compatible with TDMK series motors?
Depending on client preferences and application needs, Chinese standard bearings as well as premium global brands like SKF, FAG, and NSK are available.
What do the numbers in the TDMK model code mean?
In the model name (e.g., TDMK 400-32/2150), '400' indicates the rated power in kW, '32' represents the number of poles, and '2150' denotes the outer diameter of the stator core in millimeters.
