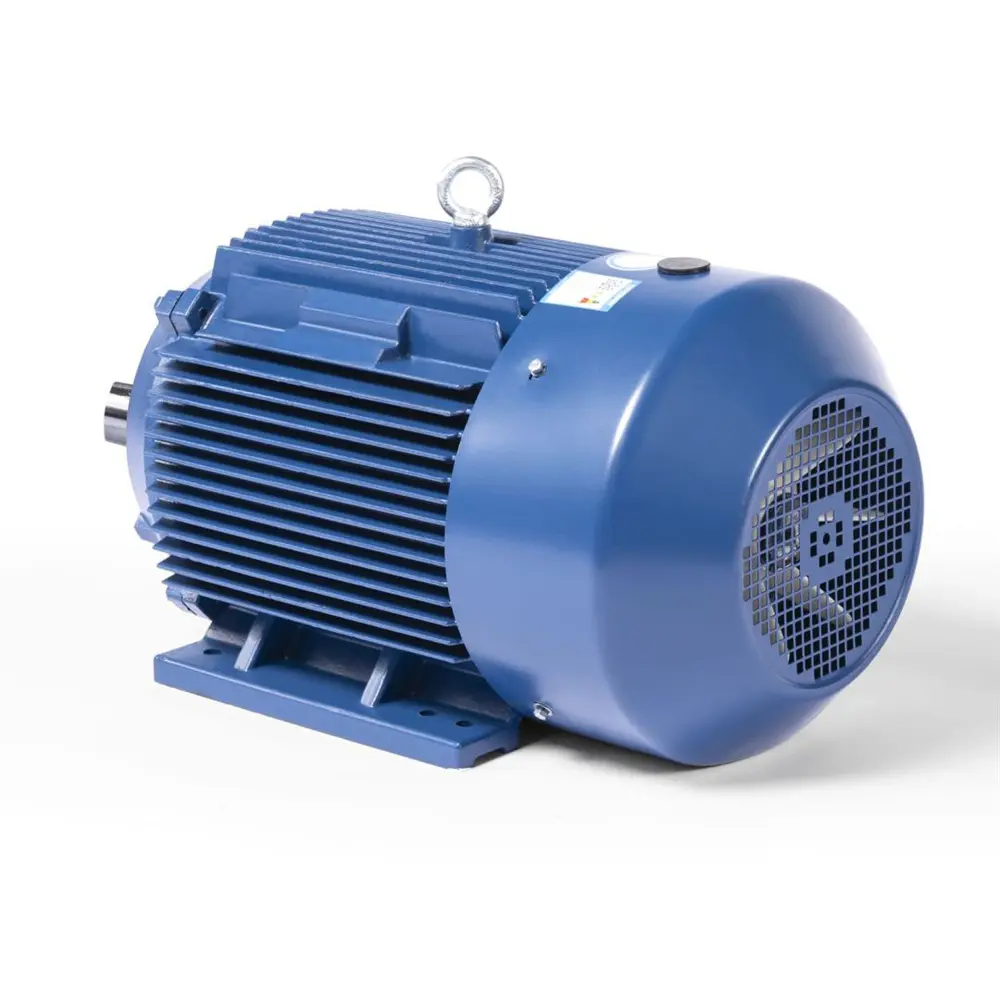

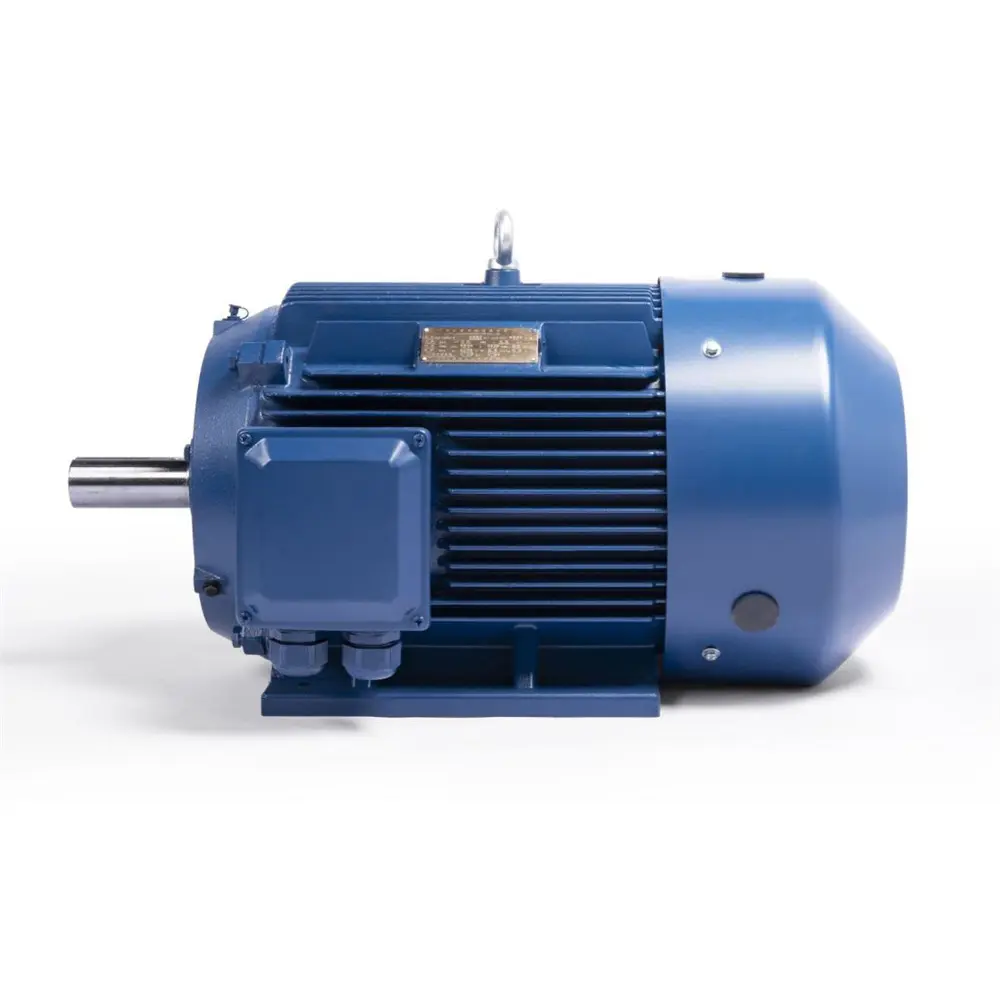

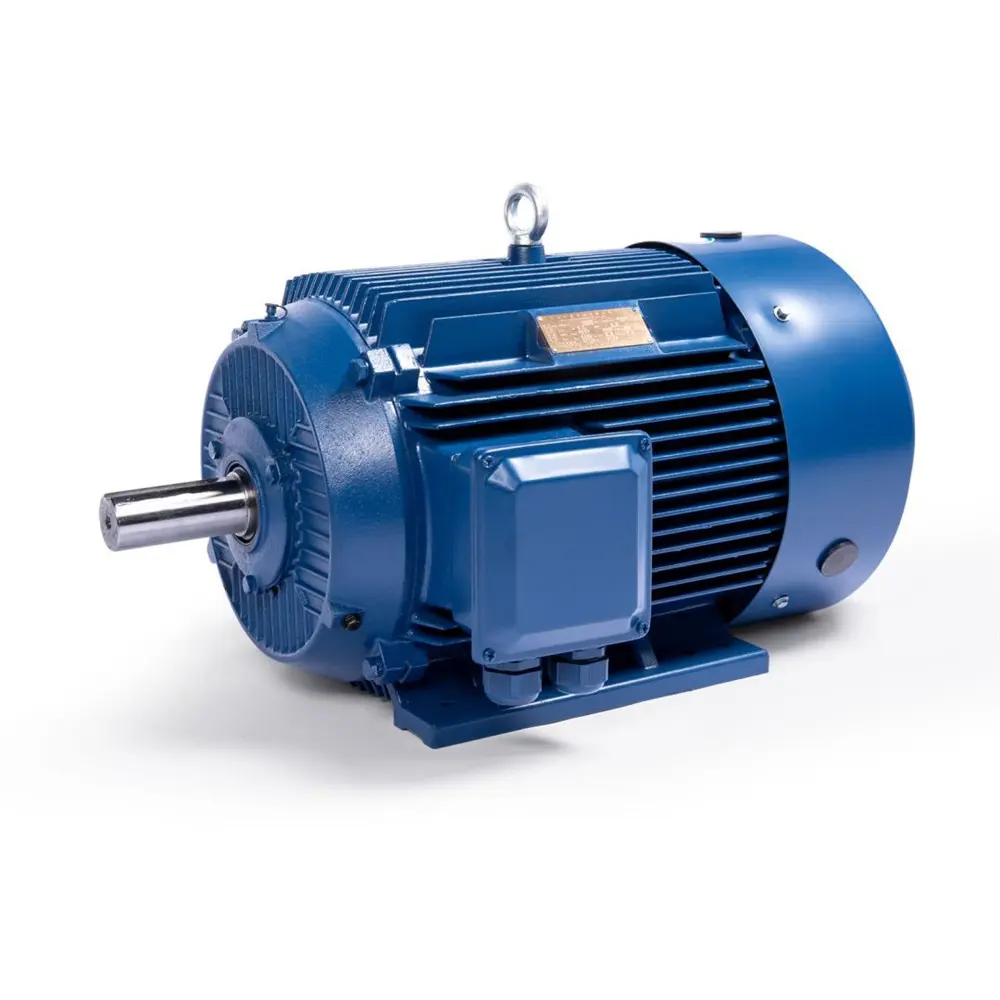

High-Quality YE4 IE4 Three Phase Low Voltage Induction Motors Suppliers, industrial

YE4 series motor is a fully enclosed, self fan cooled squirrel cage three-phase asynchronous motor made of new materials and optimized design using in compressors, fans, water pumps and other mechanical equipment. They can also be used in petroleum, chemical medicine, mining and other environments Industry.

Product Description

Product Details

YE4 series high-efficiency three-phase asynchronous motors are fully enclosed, self-fan-cooled, squirrel-cage, high-efficiency three-phase asynchronous motors. The power level and installation dimensions of this series of motors comply with the requirements of the International Electrotechnical Commission (IEC) standards, which are conducive to the installation of export machinery and equipment and the replacement of imported equipment. It has the characteristics of excellent performance, safe and reliable use, lower vibration and noise than similar products, and meets environmental protection requirements. It is suitable for non-explosive environments in petroleum, chemical, mining, metallurgy, power and other industries. It is an ideal power equipment.

Basic Parameters

Frame size 80-450mm
Power 0.75-1000kW
Frequency 50Hz/60Hz
Voltage 220V/380V/460V/415V/660V/690V
Speed 3000rpm/1500rpm/1000rpm/750rpm/600rpm
Protection Grade IP55/IP56/IP65
Cooling Method TEFC(IC411)
Insulation F/H
Duty S1
Ambient temperature -15 °C to + 40 °C
Environment indoors/outdoors/anti-corrosion
Altitude standard altitude≤1000m
Bearing Chinese/SKF/FAG/NSK available
Mounting IMB3/B5/V1/B35

Motor Type Description

Y E4 - 160 M 1 - 2 W
  • Y - asynchronous motor
  • E4 - efficiency grade IE4
  • 160 - frame size 160mm
  • M - frame length
  • 1 - core length
  • 2 - number of poles
  • W - ambient code (W-outdoors, F1/F2-indoor anti corrosion, WF1/WF2-outdoor anti corrosion)
Squirrel Cage Motor is a versatile and reliable choice for a range of industrial applications, offering high performance and energy efficiency. This series of motors meet IE4 energy requirements IEC60034-30-2014 and YE4 performance requirements in JB/t13299-2017. YE4 series motors have high efficiency, large starting torque, low noise and natural cooling and heat dissipation conditions.

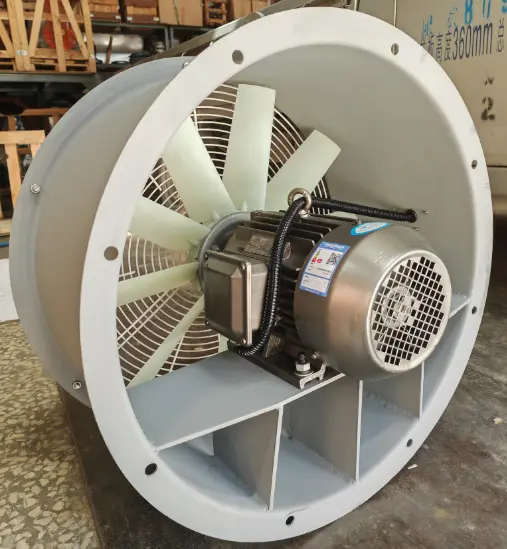

YE4 motor fans6wb
Low-voltage three-phase squirrel-cage motors are self-starting and widely used in industry for their simple design, rugged construction, low maintenance costs, and price. Whether you need motors for fans, pumps, compressors or other industrial applications, these motors provide the perfect solution.

Frequently Asked Questions

What are the main characteristics of the YE4 series motor?
The YE4 series motors are fully enclosed, self-fan-cooled, squirrel-cage, high-efficiency three-phase asynchronous motors. They offer excellent performance, safe and reliable use, and low vibration and noise while meeting strict environmental protection requirements.
What efficiency standards do the YE4 motors comply with?
This series of motors meets the IE4 energy efficiency requirements according to the IEC60034-30-2014 standard, and the YE4 performance requirements specified in JB/t13299-2017.
Which industries and environments are these motors suitable for?
They are ideal for non-explosive environments in petroleum, chemical, mining, metallurgy, power, and other industrial sectors. They are widely applied to drive machinery such as fans, pumps, and compressors.
What protection grades and cooling methods do they use?
The YE4 motors feature protection grades of IP55, IP56, or IP65, and utilize the TEFC (IC411) Totally Enclosed Fan Cooled cooling method with Class F or H insulation.
What do the code letters "W" and "F1/F2" represent in the model description?
These letters indicate the ambient environmental code: "W" is for outdoor use, "F1" or "F2" stands for indoor anti-corrosion, and "WF1" or "WF2" represents outdoor anti-corrosion compliance.
