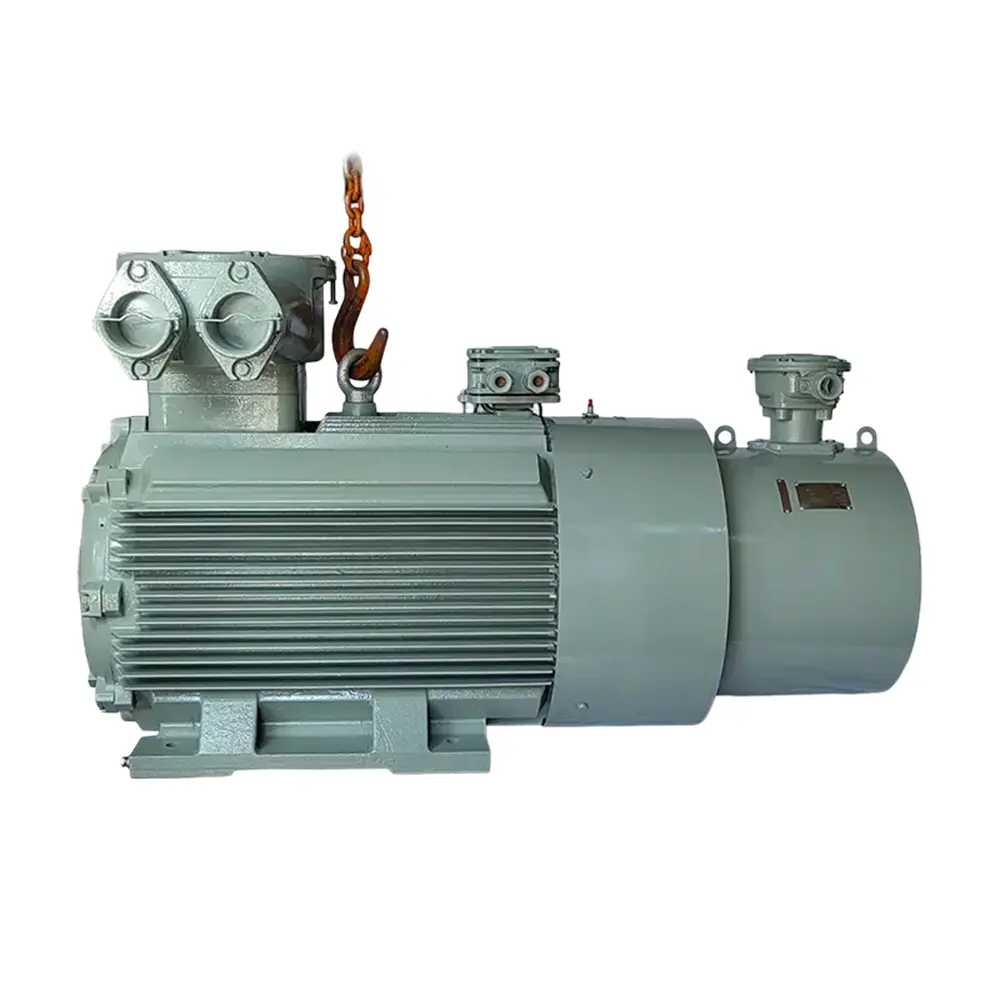

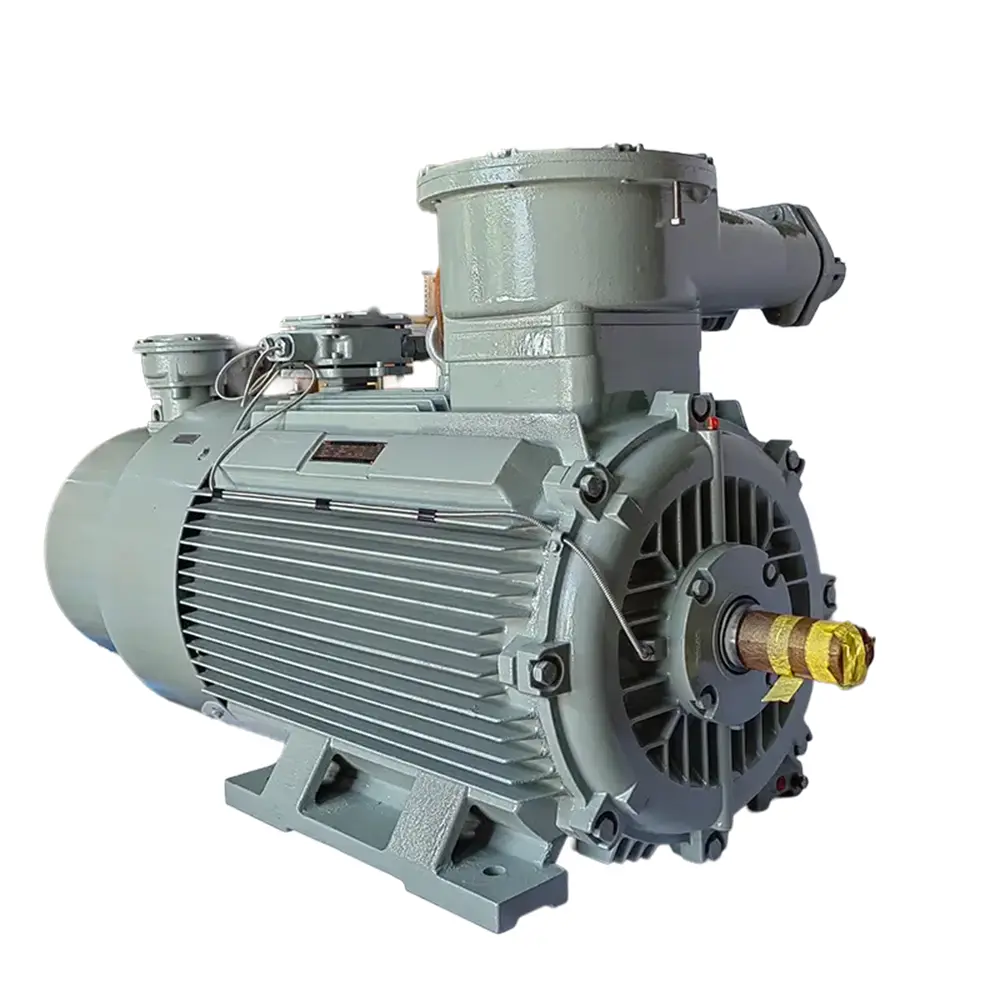

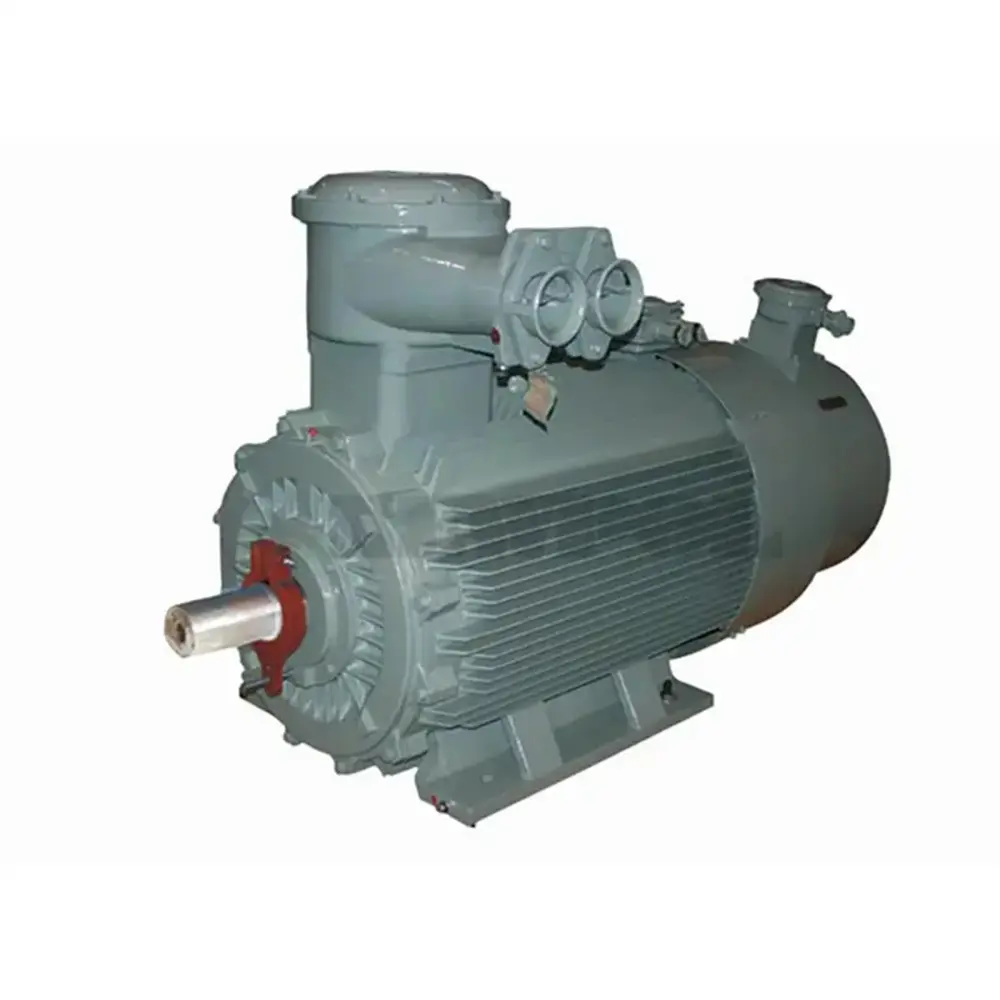

High-Quality YBBP Low voltage explosion-proof variable frequency three-phase motor Suppliers, Companies
YBBP series flameproof variable frequency motors have the advantages of large junction box volume, improved safety and reliability, larger capacity and professional appearance design, which greatly improves the market competitiveness of explosion-proof motor products.
YBBP series flameproof variable frequency speed regulating three-phase asynchronous motor is a new product jointly developed by the German technical team and the Chinese technical team. It fully absorbs the excellent genes of European explosion-proof motor design, and has a brand-new appearance design to improve the safety performance of the motor. When used with a frequency converter, it can achieve stepless speed regulation in a wide frequency range. It has the characteristics of wide speed regulation range, fast dynamic response, and high speed regulation accuracy. The power level and installation dimensions of this series of motors comply with the standards of the National Electrical Engineering Commission (IEC), and their corresponding relationship is the same as the German DIN42673 standard, which is conducive to the matching of export equipment and spare parts of imported equipment. This product is a brand-new upgraded product launched for the world.
Basic parameters
Frame size
H80-H355mm
Power
0.18-375kW
Frequency conversion range
3~100Hz
Voltage
220V/380V/400V/415V/440V/660V
Speed
3000rpm/1500rpm/1000rpm/750rpm
Protection Grade
IP54/IP55/IP56
Cooling Method
IC411/IC416
Insulation
F/H
Service
S1
Ambient temperature
-15 °C to + 40 °C
Environment
indoors/outdoors/anti-corrosion
Altitude
standard altitude≤1000m
Bearing
Chinese/SKF/FAG/NSK available
Mounting
IMB3/B5/V1/B35
Explosion proof class
Exd II BT4 Gb /Ex dII CT4Gb/ Exd I Mb
Motor type description
Y B BP - 315 L 1 - 2 W
YAsynchronous Motor
BExplosion-proof Type
BPInverter motor
318Frame Size:315mm
LFrame Length
1Core length
2Pole
WOutdoors
Ex d IIB T4 Gb
ExExplosion Protection Mark
dType of Explosion Protection (Explosion-proof Type)
IIBElectrical Apparatus Class (Class II B)
T4Temperature Group (T4)
GbEquipment Protection Degree
Frequently Asked Questions
What is the frequency conversion range of the YBBP series motor?
The YBBP series motor supports a frequency conversion range of 3 to 100Hz, enabling stepless speed regulation over a wide range.
Which international standards does this series comply with?
The power levels and installation dimensions comply with the International Electrotechnical Commission (IEC) standards and match the German DIN42673 standard, making them ideal for export equipment matching.
What are the available protection and insulation classes?
The motors offer Protection Grades of IP54, IP55, or IP56, and are built with F or H class insulation for high reliability.
Can YBBP motors be used in harsh or corrosive environments?
Yes, these motors are designed for indoor, outdoor, and anti-corrosion environments, with an operational ambient temperature range of -15 °C to +40 °C.
What explosion-proof classifications does the YBBP series support?
Supported explosion-proof classifications include Exd II BT4 Gb, Ex dII CT4Gb, and Exd I Mb.
What brands of bearings are available for selection?
Customers can select from Chinese high-quality bearings or imported premium brands including SKF, FAG, and NSK.
