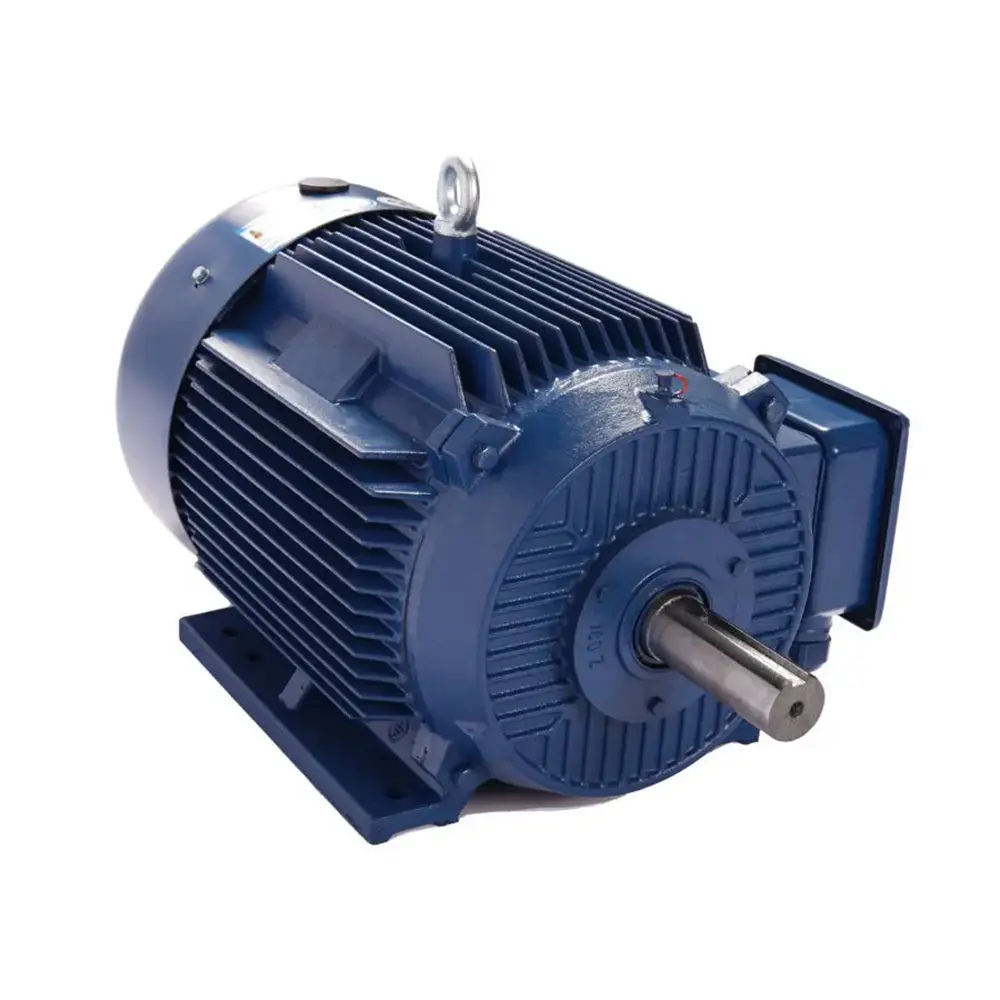

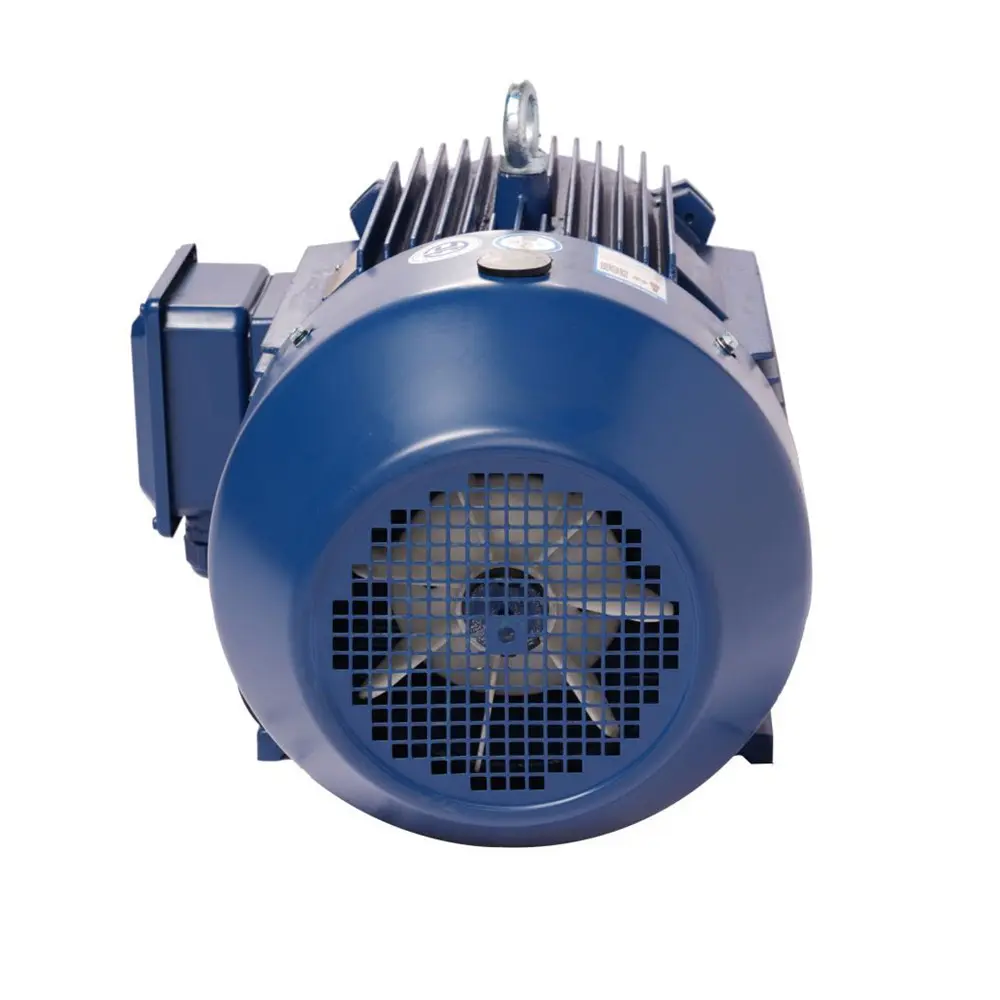

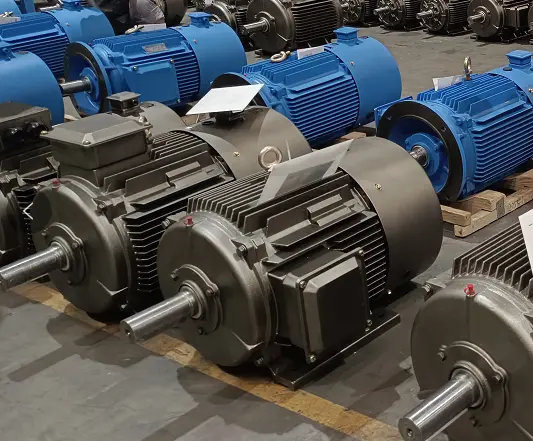

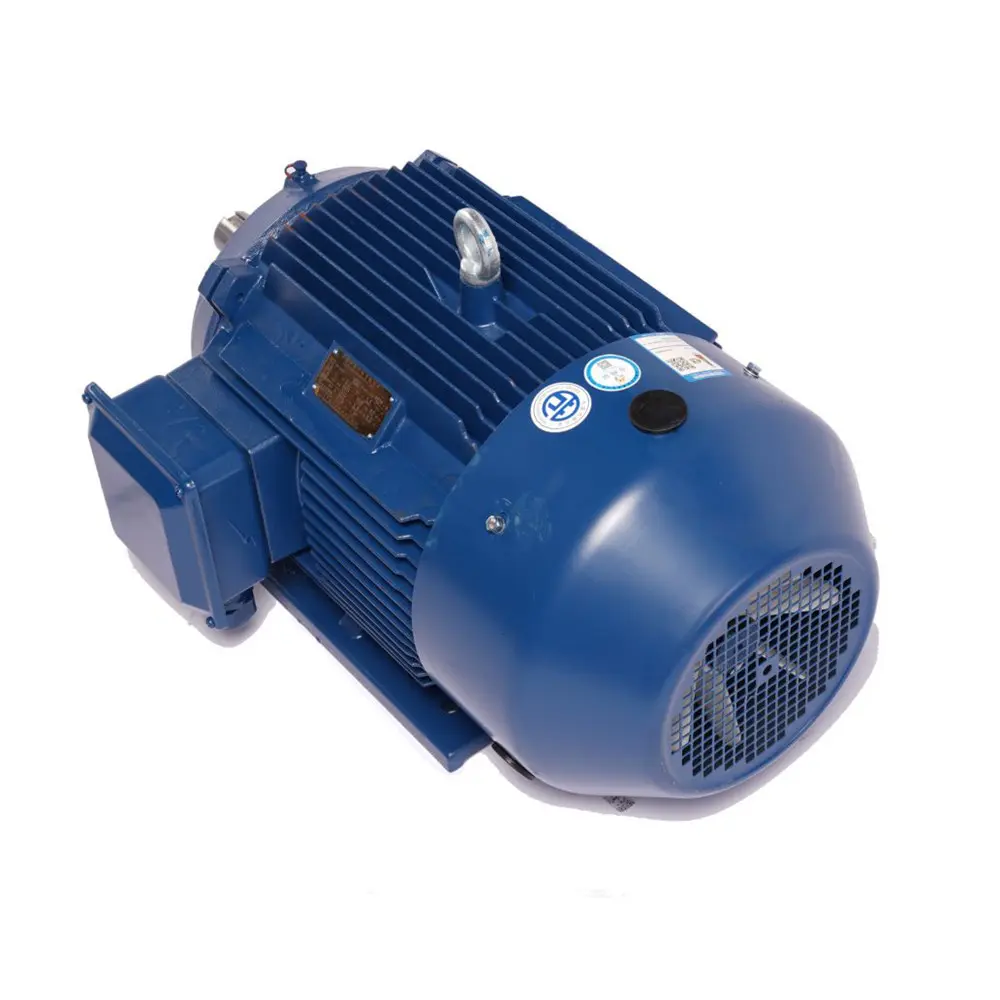

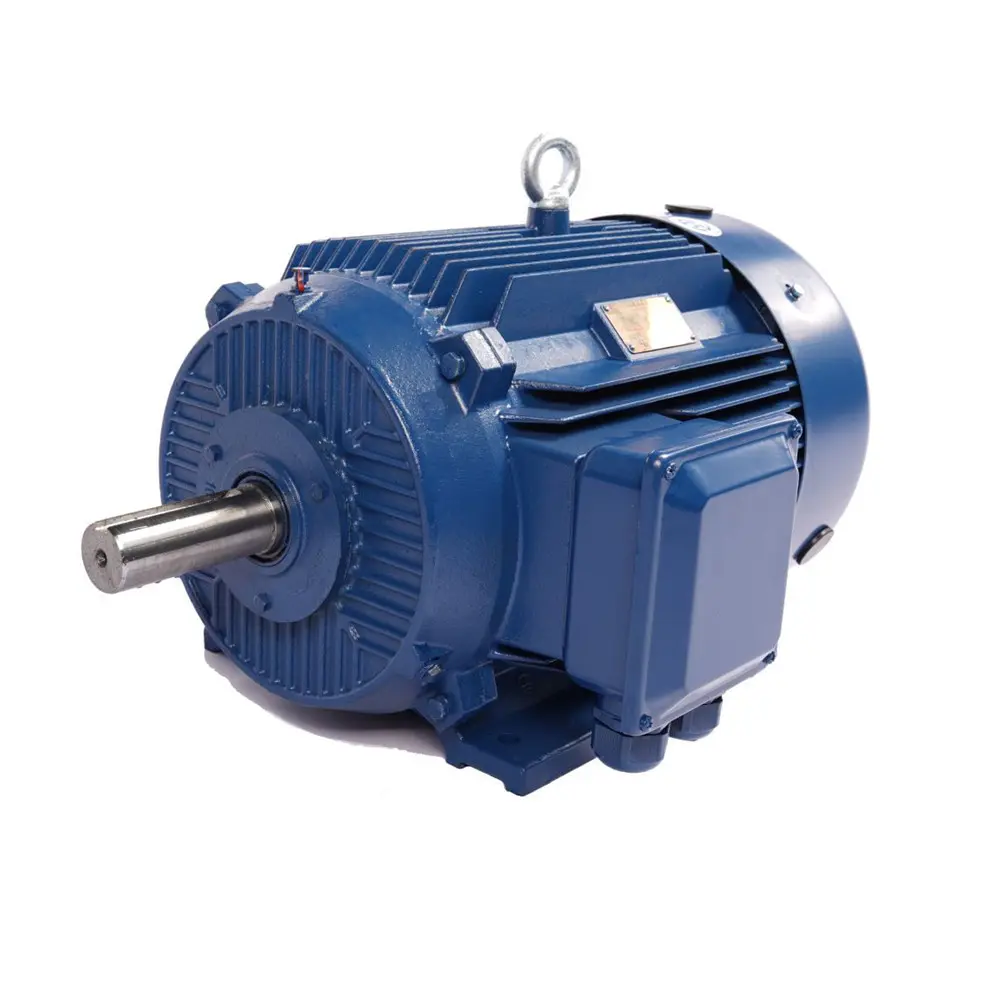

YE5 series super-efficient three-phase asynchronous motors have the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection and insulation levels, and are usually more energy-efficient than IE3 and IE4 class motors. They use advanced design and materials to minimise energy loss and thus reduce operating costs.
The IE5 motor efficiency standard will significantly help factories and governments to reduce their carbon emissions. In addition to the ecological benefits, efficient motors are cheaper to run, so they offer immediate bottom-line benefits. This is particularly important for motors that run continuously or for long periods of time, and the bigger the motor the more energy it saves.
IE5 series motors have the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection level and insulation level, and can be widely used in fans, pumps, machine tools, compressors and transport machinery to drive a variety of general mechanical equipment.
Basic parameters
Frame size
80-450mm
Power
0.75-1000kW
Frequency
50Hz/60Hz
Voltage
220V/380V/460V/415V/660V/690V
Speed
3000rpm/1500rpm/1000rpm/750rpm/600rpm
Protection Grade
IP55/IP56/IP65
Cooling Method
TEFC(IC411)
Insulation
F/H
Duty
S1
Ambient temperature
-15℃ to + 40℃
Environment
indoors/outdoors/anti-corrosion
Altitude
standard altitude ≤1000m
Bearing
Chinese/SKF/FAG/NSK available
Mounting
IMB3/B5/V1/B35
Motor Type Description
Y E5 -160 M 1 - 2 W
Yasynchronous motor
E5efficiency grade IE5
160frame size 160mm
Mframe length
1core length
2number of poles
Wambient code, W-outdoors, F1/F2-indoor anti corrosion, WF1 WF2-outdoor anti corrosion.
Frequently Asked Questions (FAQ)
What are the ecological and financial advantages of IE5 series motors?
IE5 series motors meet high efficiency standards, helping factories and governments significantly reduce carbon emissions. Financially, their high efficiency lowers operational costs, offering immediate bottom-line savings, particularly for motors running continuously or for long periods.
What machinery and applications are these motors suitable for?
These motors can be widely utilized to drive general mechanical equipment, including fans, water pumps, machine tools, air compressors, and various transport machinery.
What are the protection grades and cooling methods of these motors?
The motors feature protection grades ranging from IP55, IP56 to IP65, and use TEFC (Totally Enclosed Fan Cooled, IC411) as their standard cooling method.
What environmental conditions and altitudes can the motors withstand?
They operate efficiently within an ambient temperature range of -15℃ to +40℃ and at standard altitudes of ≤1000m. Configurations are available for indoor, outdoor, and anti-corrosion environments.
What options are available for bearings and mounting types?
Bearings can be sourced from Chinese manufacturers or premium brands like SKF, FAG, and NSK. Standard mounting options include IMB3, B5, V1, and B35 configurations.
