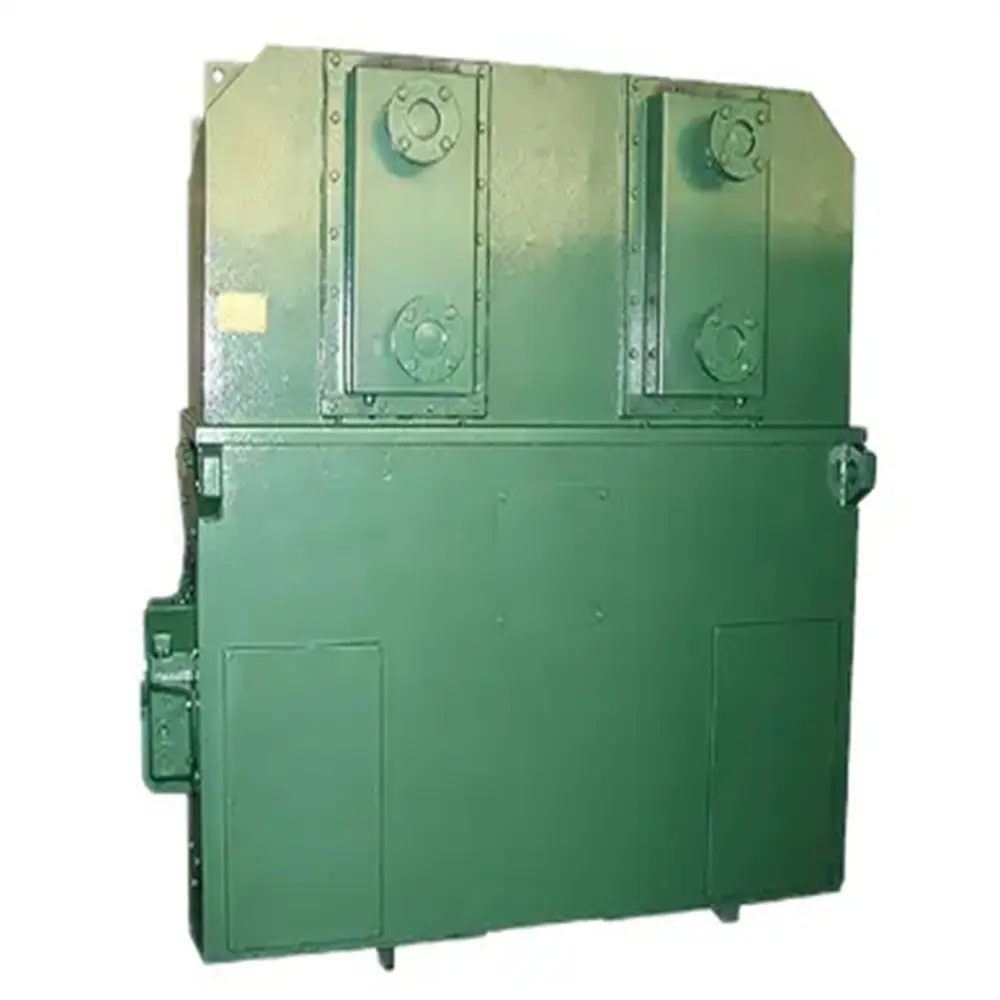

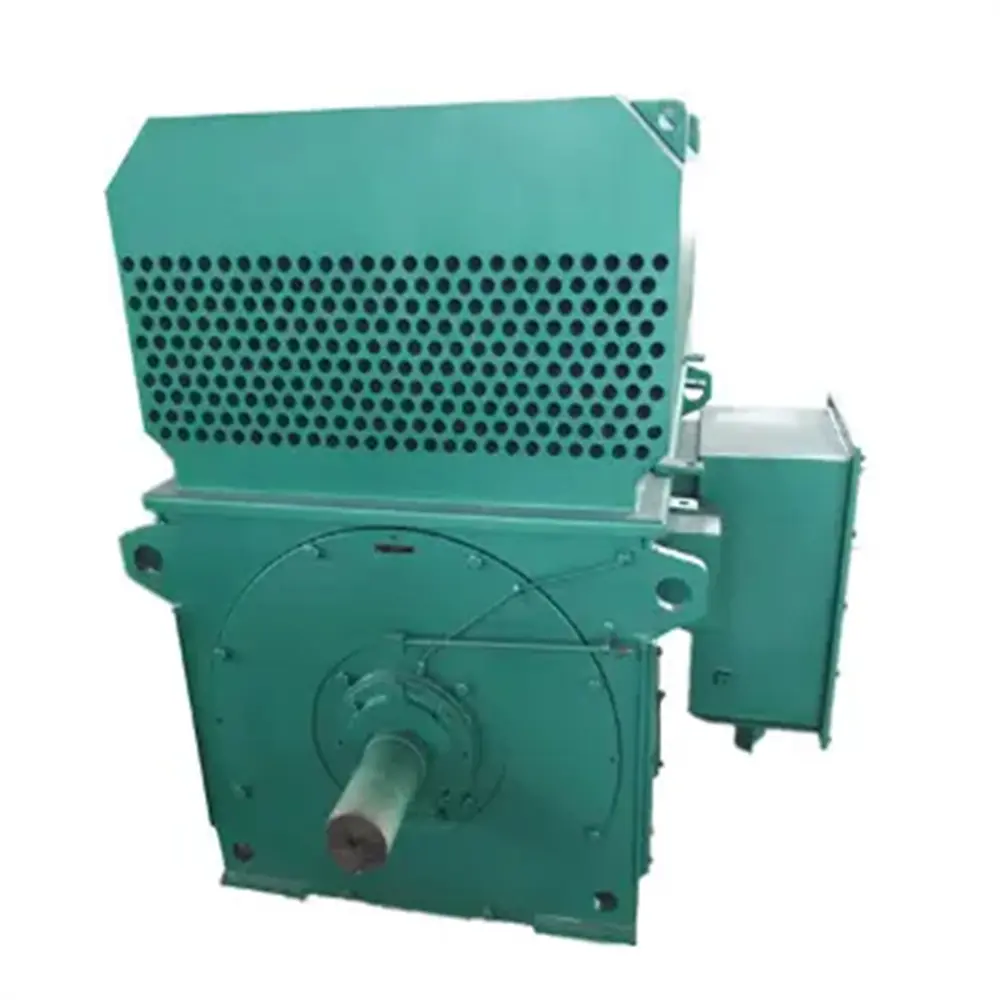

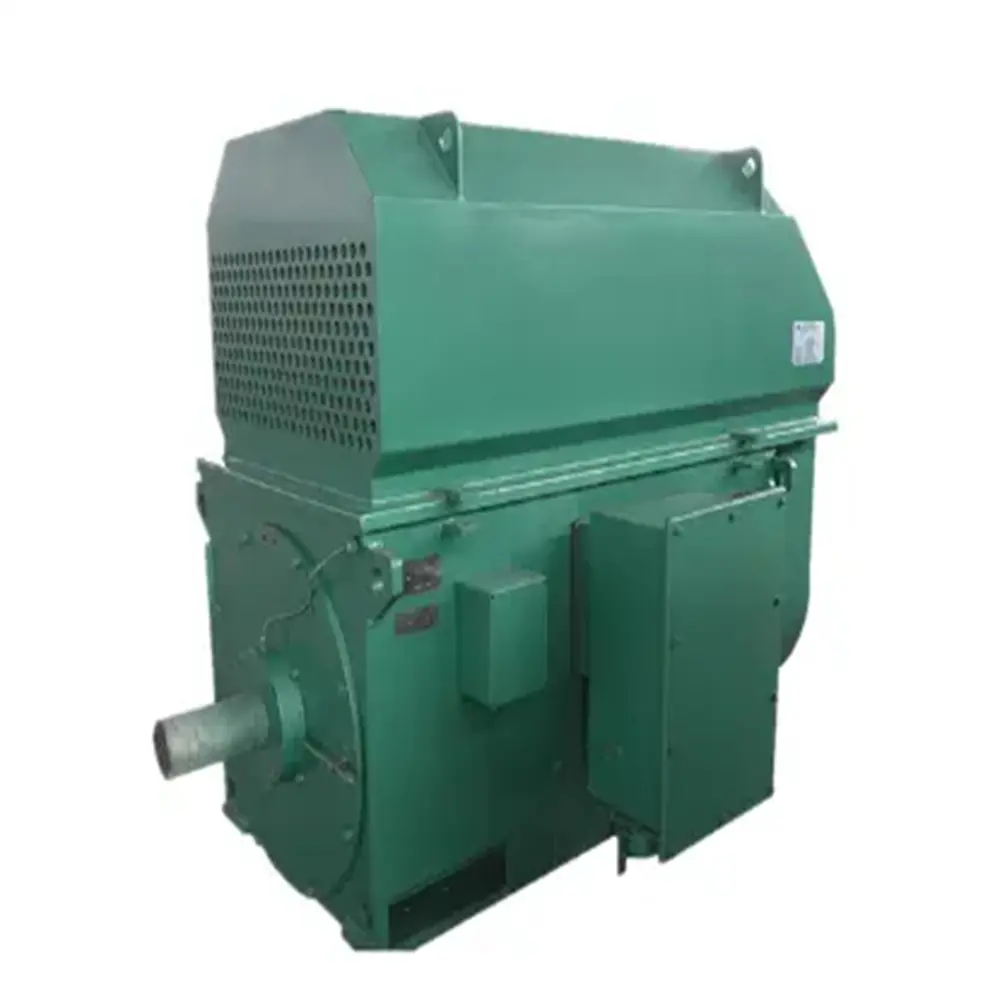

YKS series high-voltage water-cooled motor structure and installation type is IMB3, the quota is based on continuous working system (S1) as the benchmark of the continuous quota, motor rated frequency is 50 Hz, rated voltage is divided into 6 KV, 10 KV, other voltage levels or special requirements, in order can be agreed with users.
The rotor of YKS series high voltage motor adopts a squirrel cage structure with reliable cast aluminium or copper conductors.
YKS series high voltage motors can be used to drive various general machinery, such as compressors, pumps, fans, crushers, cutting machines, transport machinery and other mechanical equipment. In mining, machinery industry, power plant and other industrial and mining enterprises as the prime mover. Used to drive blowers, coal mills, rolling mills, winches, etc. should be explained when ordering.
| Frame size | H355~H800 mm |
| Rated output | 150~8000 kW |
| Rated voltage | 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V |
| Rated frequency (speed) |
50Hz (3000/1500/1000/750/600/500/425/375/325 r/min) 60Hz (3600/1800/1200/900/720/600/500/450/400 r/min) |
| No. of poles | 2P, 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P |
| Mounting methods | Horizontal foot mounted IM1001 (B3) |
| Material of frame/housing | Fabricated in welded steel plate frame |
| Service Factor | 1.00 |
| Insulation Class | F (155℃) |
| Temp. Rising | ΔT=80°K |
| Working Duty | S1 (Continuous) |
| Ambient Temperature | -20°C ~ 40°C |
| Altitude | ≦1000 m |
| Ambient humidity | ≦90% |
| Protection Class | IP44, IP54, IP55 |
| Cooling | IC81W Self-ventilated with air-to-water heat exchanger, heat exchanger on top of motor |
| Lubricating | Grease lubricated bearings |
| Altitude | PT100 |
| Material of nameplate | Stainless steel |
