| Frame size | 355-630 mm |
| Power | 355~1000 kW |
| Voltage | 3.3KV/6KV/6.6KV/10KV |
| Rated Power | 3000/1500/1000/500rpm |
| Protection Grade | IP54 |
| Cooling Method | IC411 |
| Insulation | F |
| Service | S1 |
| Ambient temperature | -15 °C ~ + 40 °C |
| Environment | indoors |
| Altitude | ≤1000m |
| Bearing | Chinese/SKF/FAG/NSK available |
| Mounting | IMB3 |
| Temperature rise limit | 80K(B) |
| Painting | As per client requirements |

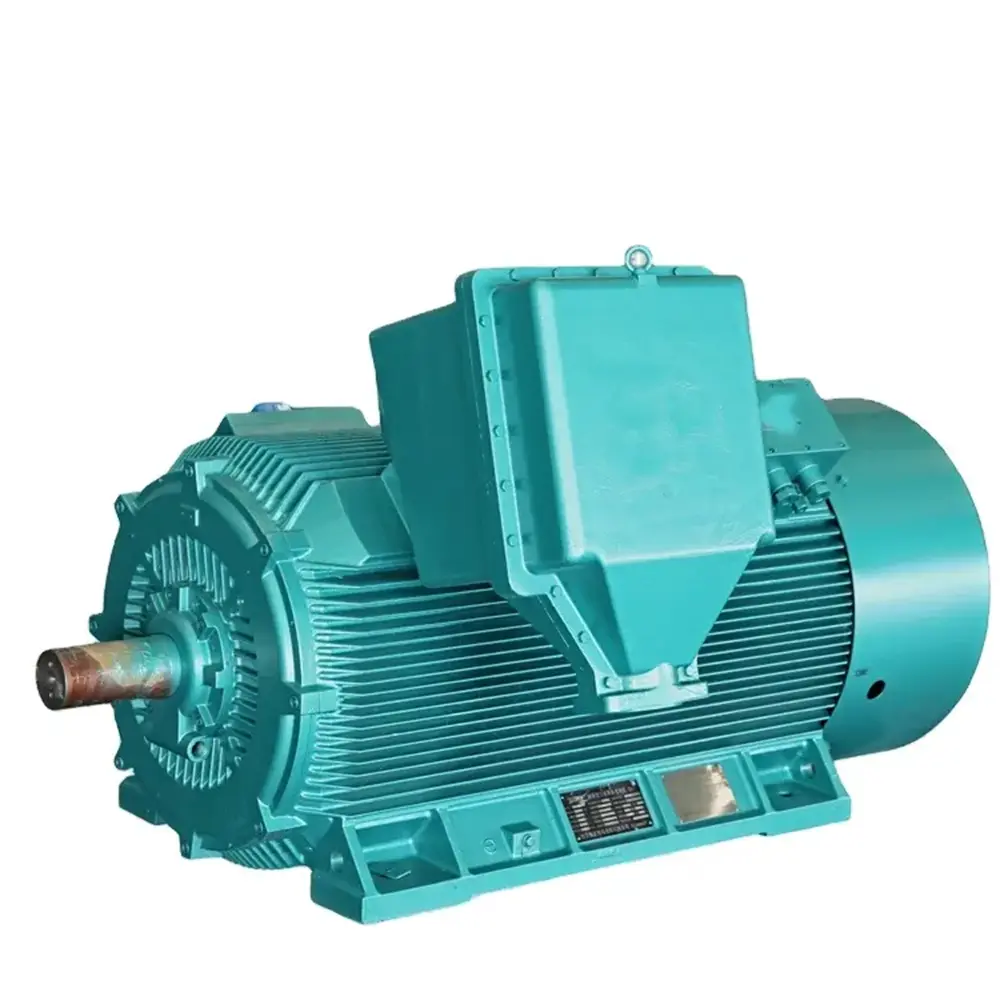

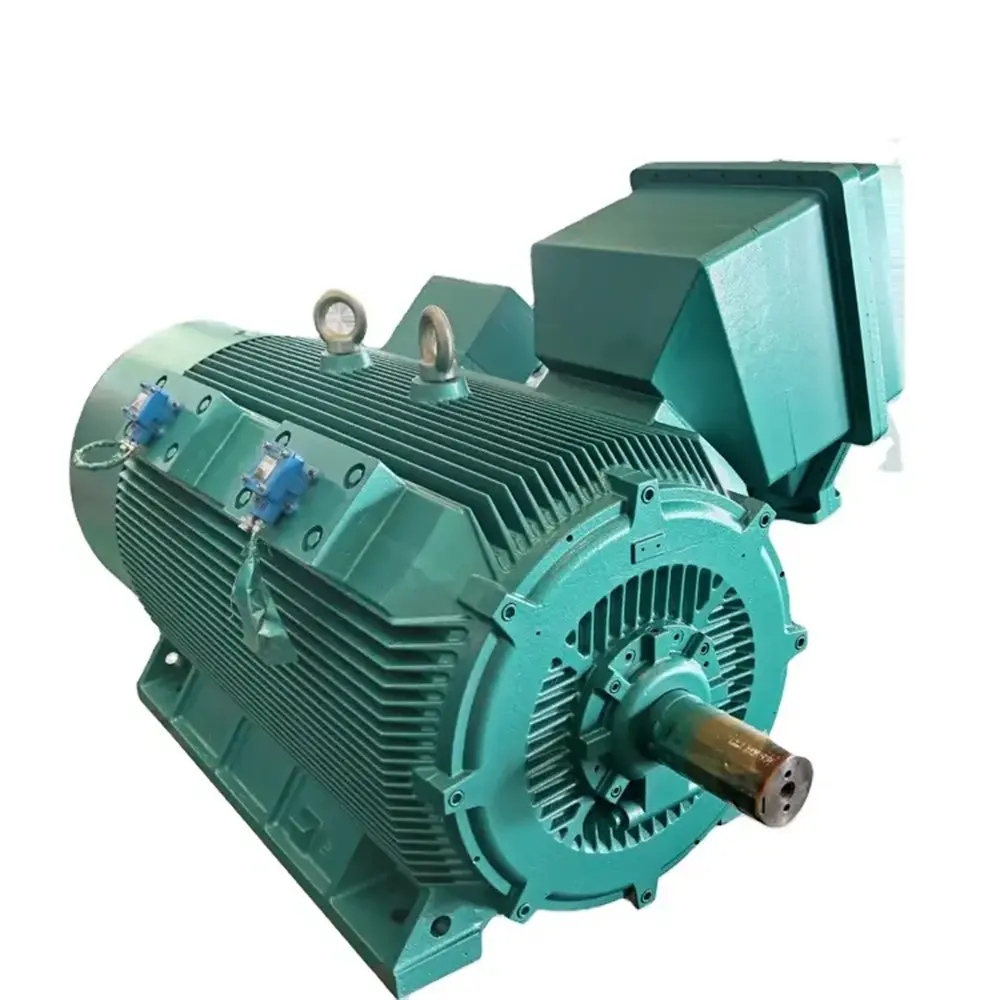

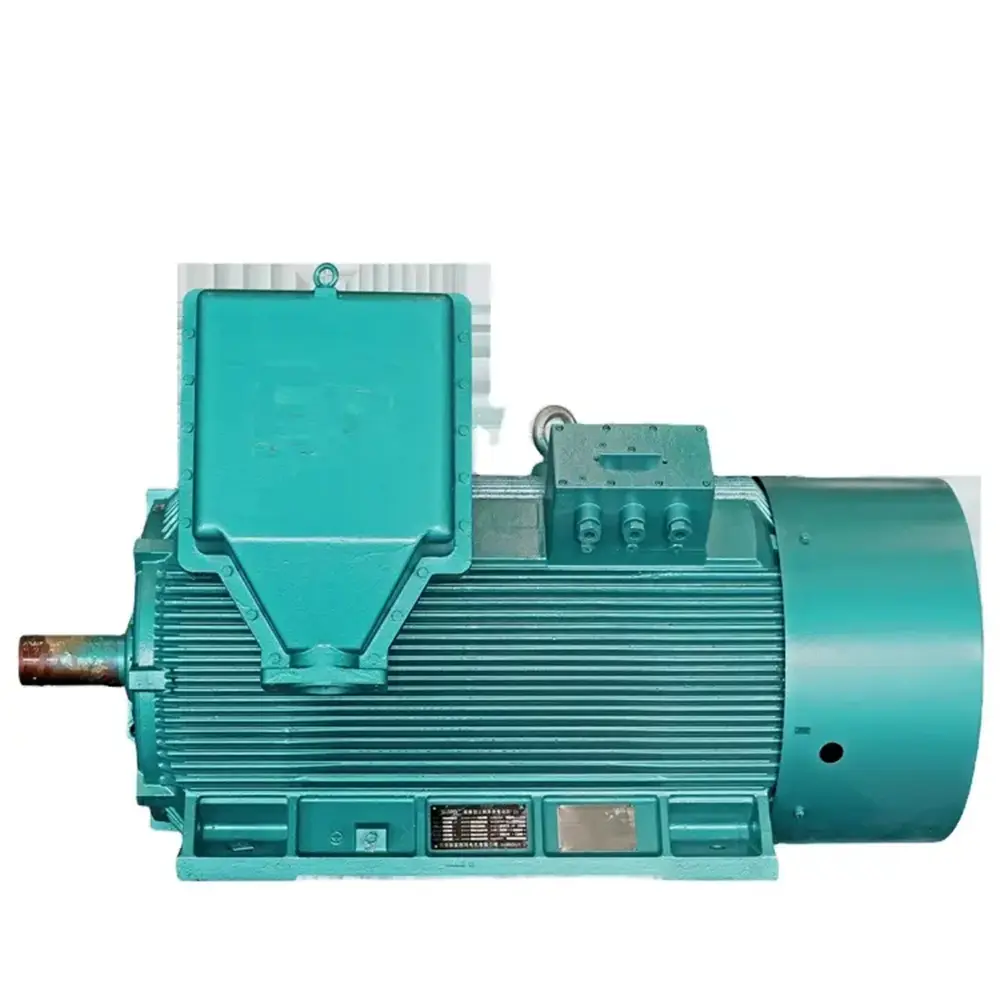

A: The Y2 series features a cast iron base design making the motor smaller yet highly powerful. Key benefits include high efficiency, substantial energy savings, low noise, low vibration, light weight, reliable performance, and easy installation and maintenance procedures.
A: This series utilizes a fully enclosed design with a protection rating of IP54 (up to IP54/IP55). It utilizes the IC411 cooling method equipped with a unidirectional external fan designed for high efficiency, high wind pressure, low noise, and zero reversal issues.
A: The Y2 series motors are commonly used to drive various industrial mechanical equipment such as fan compressors, water pumps, crushers, and cutting machine tools. They serve as primary drive devices in coal mines, power plants, machinery industries, and other industrial sectors.
A: The motor supports multiple high-quality bearing options based on client requirements, including Chinese domestic brands, SKF, FAG, and NSK bearings.
A: The motor is rated for indoor environment installations at an altitude of ≤1000 meters, with operating ambient temperature limits between -15 °C and +40 °C.
A: The motor supports rated power capacities ranging from 355kW to 1000kW, and operates under voltage specifications of 3.3KV, 6KV, 6.6KV, and 10KV.
