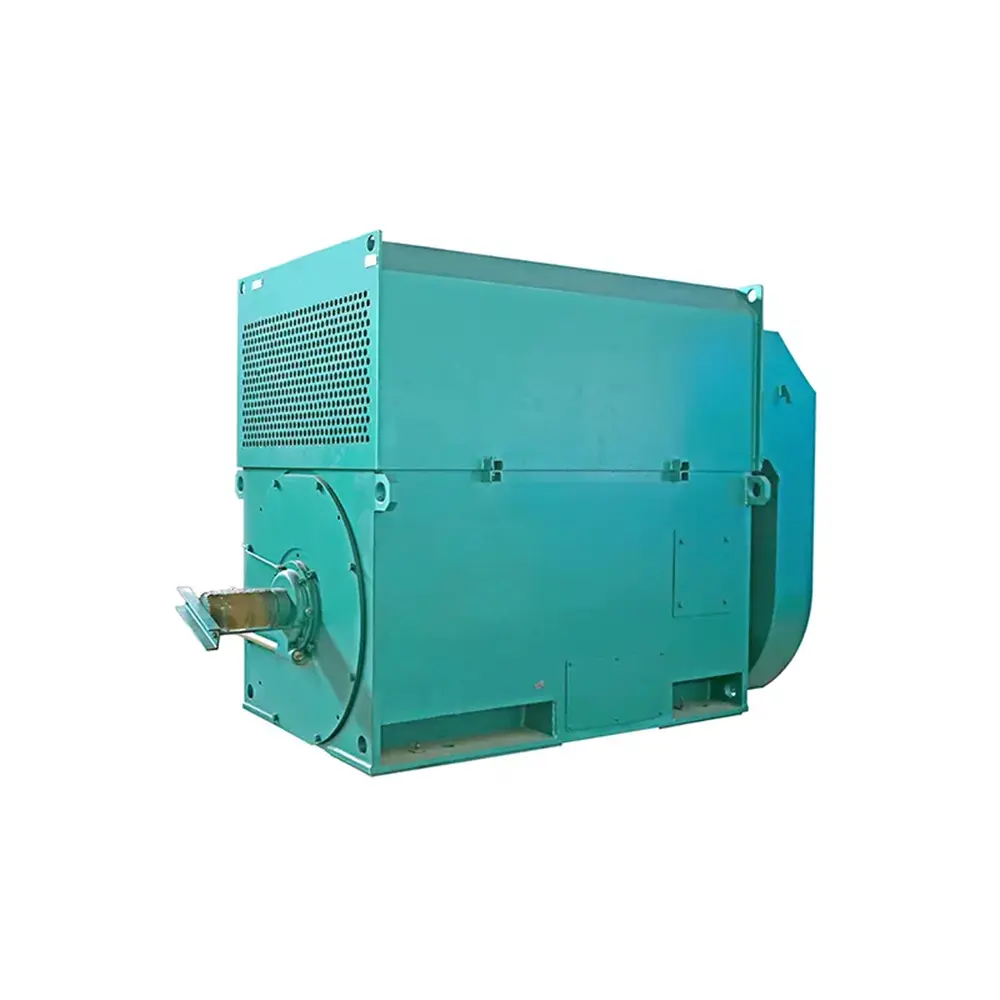

OEM YRKK high efficiency 6KV or 10KV high voltage three-phase asynchronous motor Manufacturer, Factory

The YR/YRKK motor is three-phase asynchronous motors with wound rotors. The starting torque and starting current of the motor can be adjusted by adjusting the external additional resistance of the rotor.

Product Description

Product Detail
YR/YRKK motors have the advantages of compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc. They are mainly used in rolling mills, hoists, fans, water pumps, mills, crushers, grinders and other general mechanical equipment or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, textiles, medicine, and grain processing.
Model Reference
YRKK- 630L-4
YR
High-voltage cooled wound rotor motor
KK
Air-to-Air Cooling
630
Frame Size 630 mm
L
Length of the motor
4
Pole of 4
Basic Parameters
Frame size 355~630 mm
Power 185~2000 kW
Voltage 3kv~13KV.
Rated Power 1500/1000/750/600/500rpm
Protection Grade IP55/IP54/IP23
Cooling Method IC611/IC666/IC616/IC01
Insulation F
Service S1
Ambient temperature -15 °C ~ + 40 °C
Environment indoors
Altitude ≤1000m
Bearing Chinese/SKF/FAG/NSK available
Mounting IMB3
Temperature rise limit 80K(B)
Painting As per client requirements
Motor Type Description
high voltage three-phase asynchronous motorltf
Frequently Asked Questions
What are the primary applications of YR/YRKK motors?
YR/YRKK motors are mainly used in rolling mills, hoists, fans, water pumps, mills, crushers, grinders and other general mechanical equipment, or similar machinery in industries such as petroleum, chemical, coal, power stations, metallurgy, textiles, medicine, and grain processing.
What power and voltage levels do these motors support?
These motors support a power range of 185 to 2000 kW and operating voltages from 3kV to 13kV.
What cooling methods and protection grades are available?
The cooling methods include IC611, IC666, IC616, and IC01. The protection grades available are IP55, IP54, and IP23.
What ambient conditions are suitable for these motors?
They are designed for indoor environments with ambient temperatures ranging from -15 °C to +40 °C and an altitude limit of ≤1000m.
What bearings options are provided for YR/YRKK motors?
Chinese, SKF, FAG, and NSK bearings are available depending on client requirements.
