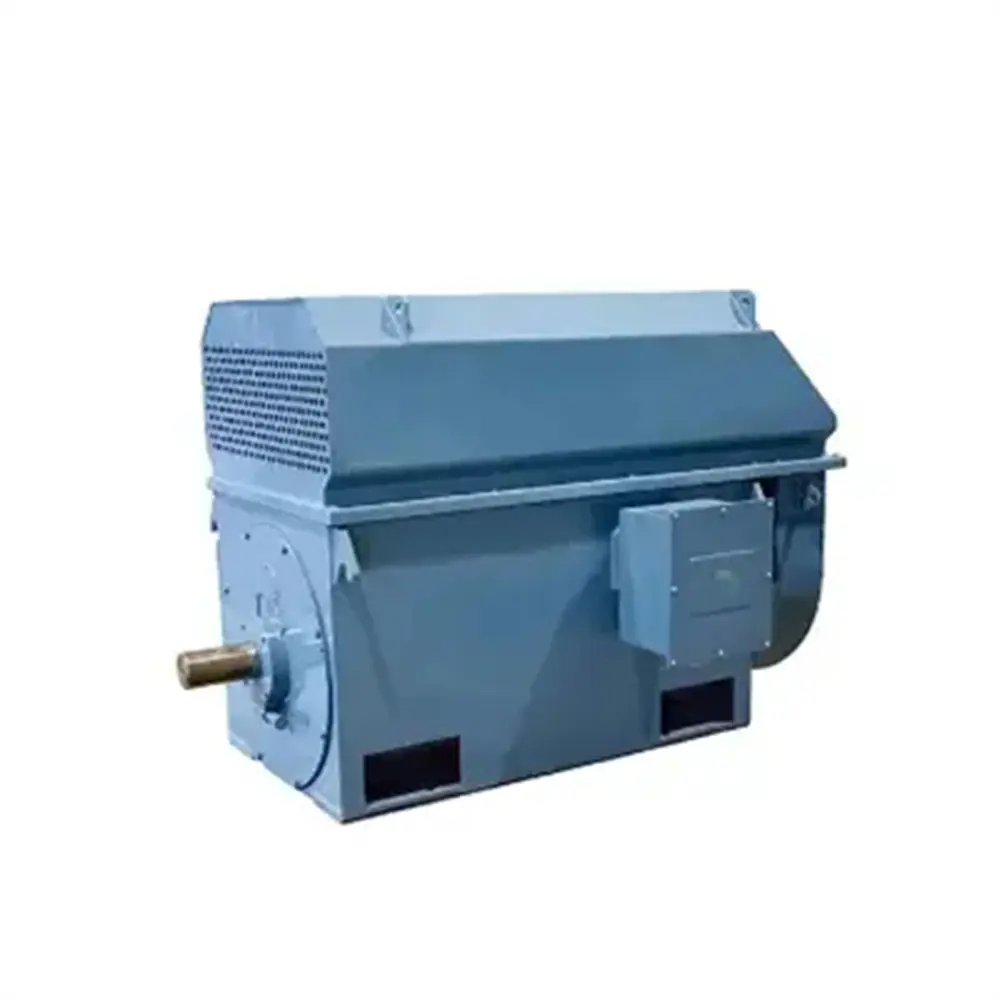

Y series high voltage 6KV, 10KV three-phase asynchronous motors can be used to drive various machines. Such as fans, compressors, water pumps, crushers, cutting machine tools and other equipment, and can be used as the prime mover three-phase asynchronous motors in coal mines, machinery industries, power plants and various industrial and mining enterprises. The structure and installation type of the motor is IMB3, the rated level is the continuous rated level according to the continuous working system (S1), the rated frequency of the motor is 50HZ, and the rated voltage is 6KV, 10KV. Other voltage levels or special requirements can be agreed upon when ordering.
| Frame Size | 355-630 mm |
| Power | 355~1000 kW |
| Voltage | 3.3KV/6KV/6.6KV/10KV |
| Rated Power | 3000/1500/1000/500rpm |
| Protection Grade | IP23 |
| Cooling Method | IC01 |
| Insulation | F |
| Service | S1 |
| Ambient temperature | -15 °C ~ + 40 °C |
| Environment | indoors |
| Altitude | ≤1000m |
| Bearing | Chinese/SKF/FAG/NSK available |
| Mounting | IMB3 |
| Temperature rise limit | 80K(B) |
| Painting | As per client requirements |
They are widely used to drive various machines, including fans, compressors, water pumps, crushers, cutting machine tools, and other industrial equipment.
The standard rated voltages are 6KV and 10KV, with options for 3.3KV and 6.6KV. Other customized voltage levels can be configured upon request.
The motors feature an IP23 protection grade and utilize the IC01 cooling method for efficient thermal management.
They are designed for indoor installation at altitudes ≤1000 meters, with operating ambient temperatures ranging from -15 °C to +40 °C.
The motors can be configured with high-quality Chinese brand bearings or premium international brands such as SKF, FAG, and NSK depending on your requirements.
