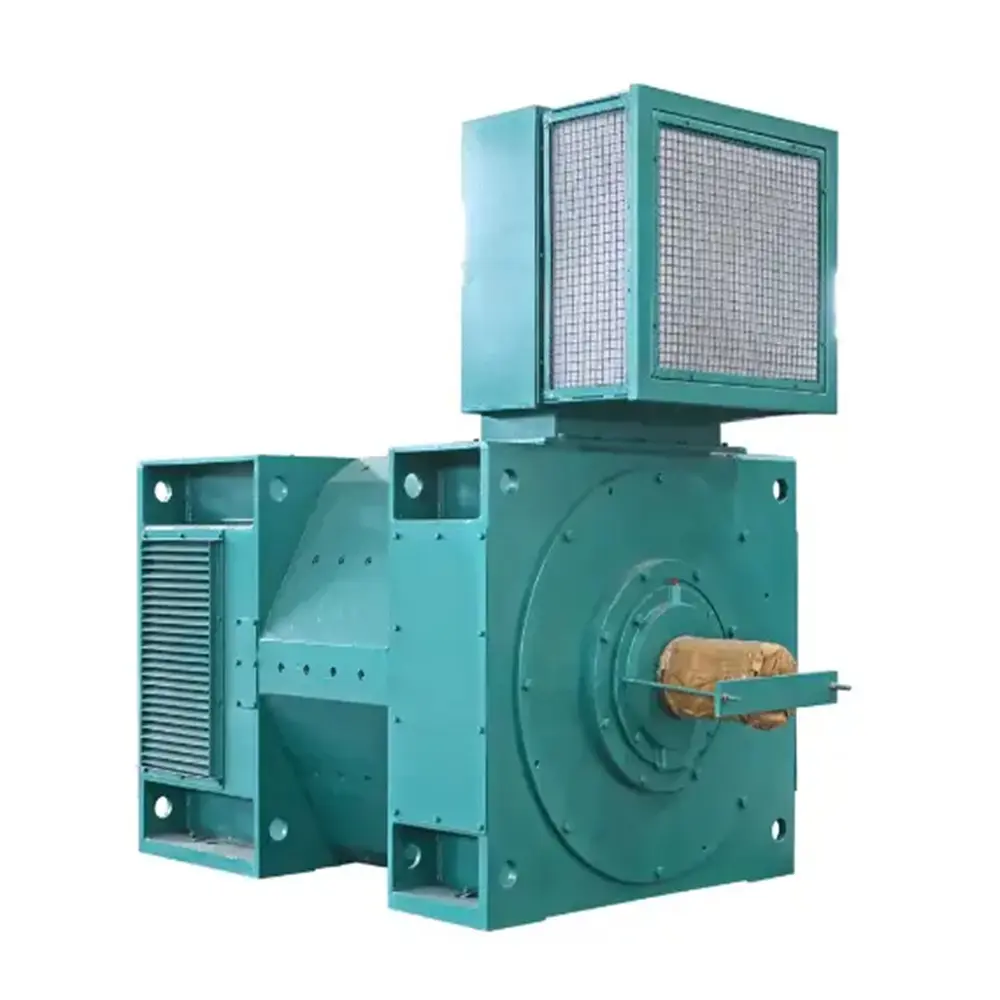

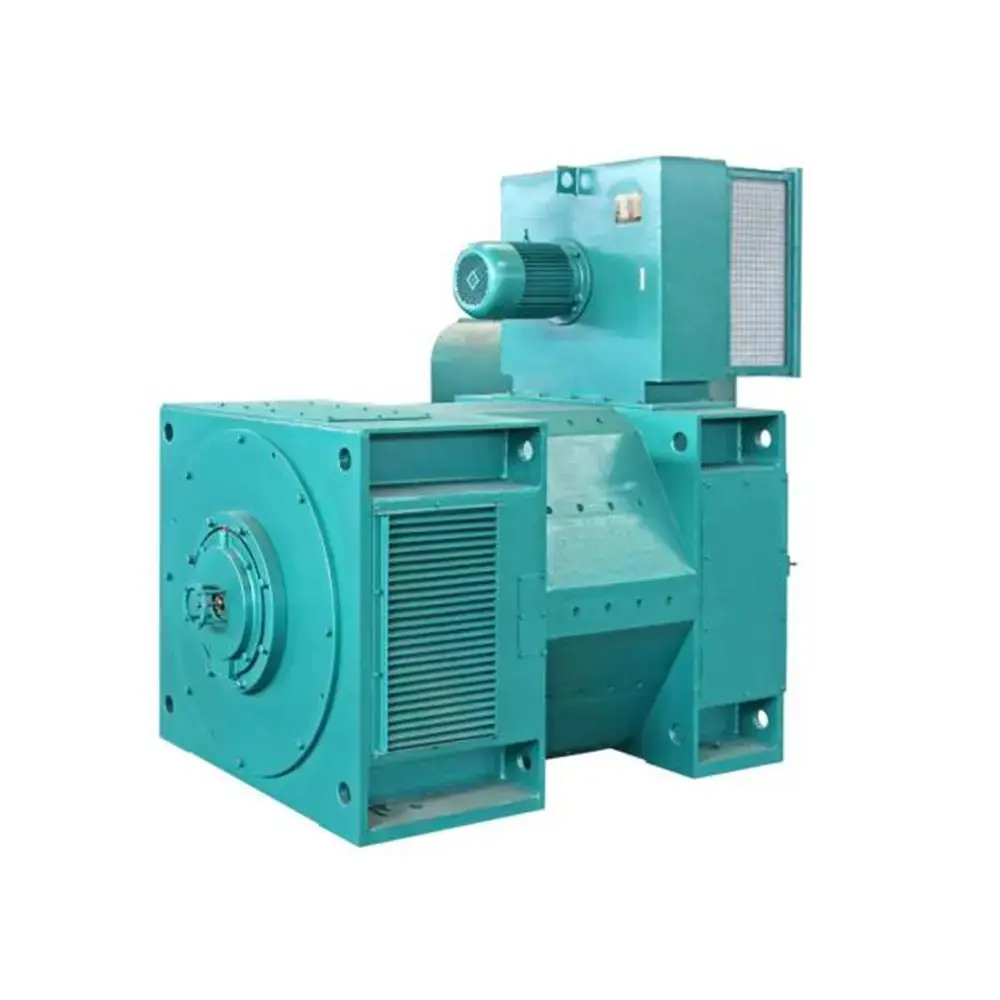

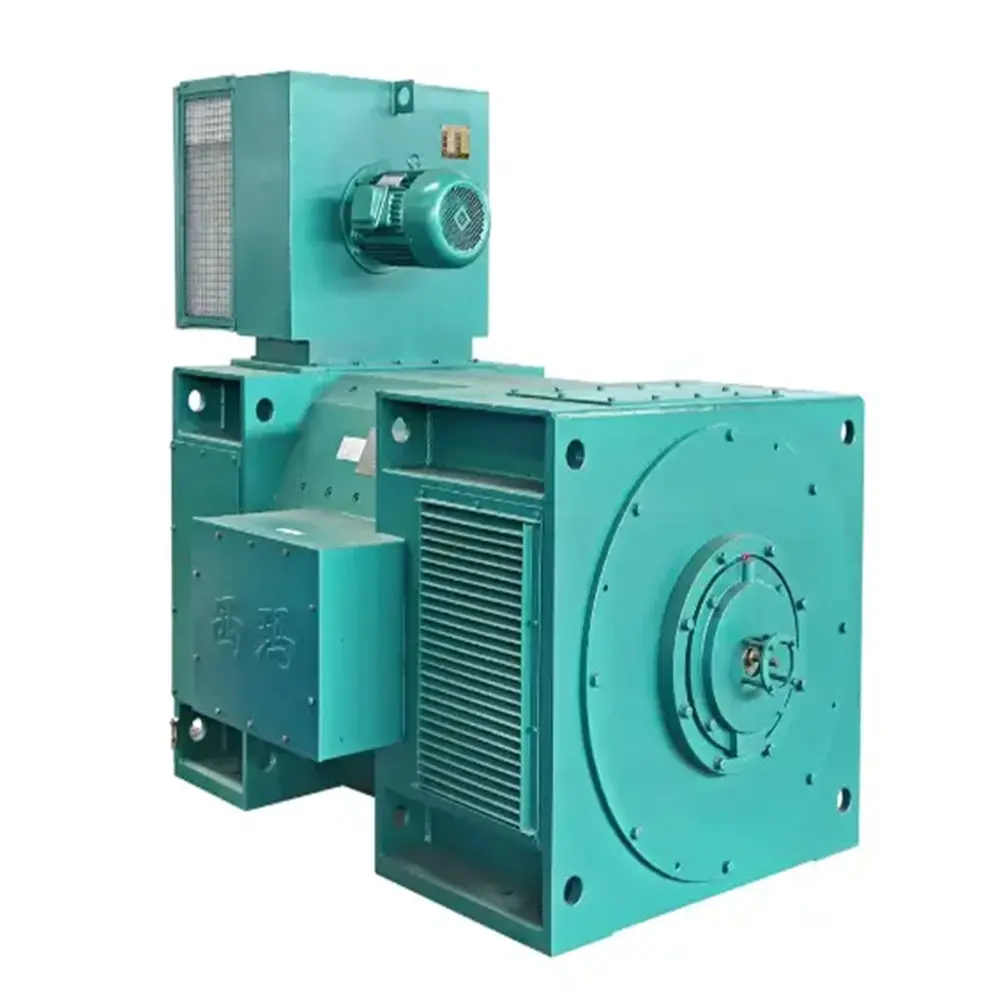

Custom Z series medium size DC motor Manufacturer, Suppliers
LT SIMO Motor Z series DC motor adopts polygonal structure, high utilization rate of internal space of stator, capable of bearing load under pulse current or sudden current change, and accurate magnetic pole positioning.
Z series motors are all equipped with compensation windings, which can provide good commutation function. F-class insulation motors have reliable insulation structure, adopt vacuum pressure impregnation process, solvent-free impregnation, stable insulation and good heat dissipation. It can be powered by DC unit power supply or static rectifier power supply, with small rotational inertia, good dynamic performance, and high load change rate. It is particularly suitable for control systems that require smooth speed regulation, high efficiency, automatic speed stabilization, and sensitive response.
This series of motors can be powered by DC power supply or static rectifier power supply, with small rotational inertia, good dynamic performance, and can withstand high load change rate. It is particularly suitable for control systems that require smooth speed regulation, high efficiency, automatic speed stabilization, and sensitive response.
It is widely used in various mechanical transmissions, such as metal rolling mills, coilers, sugar compressors, cement kilns, and rubber and plastic extruders.
What are the primary applications of Z series DC motors?
They are widely applied in mechanical transmissions across various industries, including metal rolling mills, coilers, sugar compressors, cement kilns, and rubber and plastic extruders.
What type of insulation is used in these motors?
The motors feature F-class insulation with a reliable structure, built using a vacuum pressure impregnation process and solvent-free impregnation for stable performance and good heat dissipation.
What power options and voltages are available for the Z series?
The power ranges from 832kW to 2700kW, and voltage configurations include 400V, 440V, 660V, 380V, 550V, 750V, 800V, 850V, 900V, 950V, 1000V, and 1050V. They can be powered by a DC unit or static rectifier.
What does the model number Z355-4A represent?
"Z" indicates a DC motor; "355" specifies a frame height of 355mm; "4" represents the distance between anchor bolts; and "A" denotes a first class motor.
What are the installation environment limits for these motors?
They are designed for indoor installation at altitudes of ≤1000m and within an ambient temperature range of -15 °C to +40 °C.
What protection grades and cooling options do they support?
They support IP23 and IP44 protection grades. The available cooling methods include IC06, IC17, IC37, and ICW37A86.
