China Z2 series DC motor Suppliers, Company

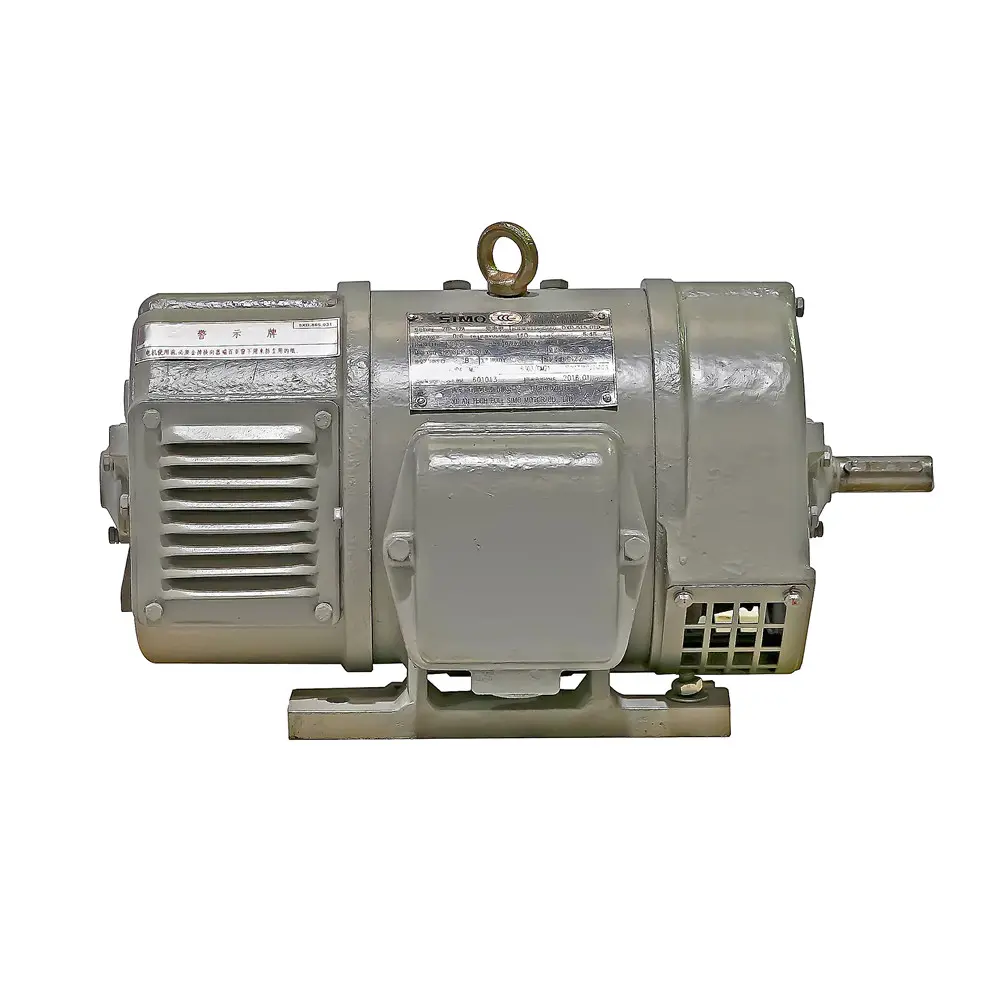

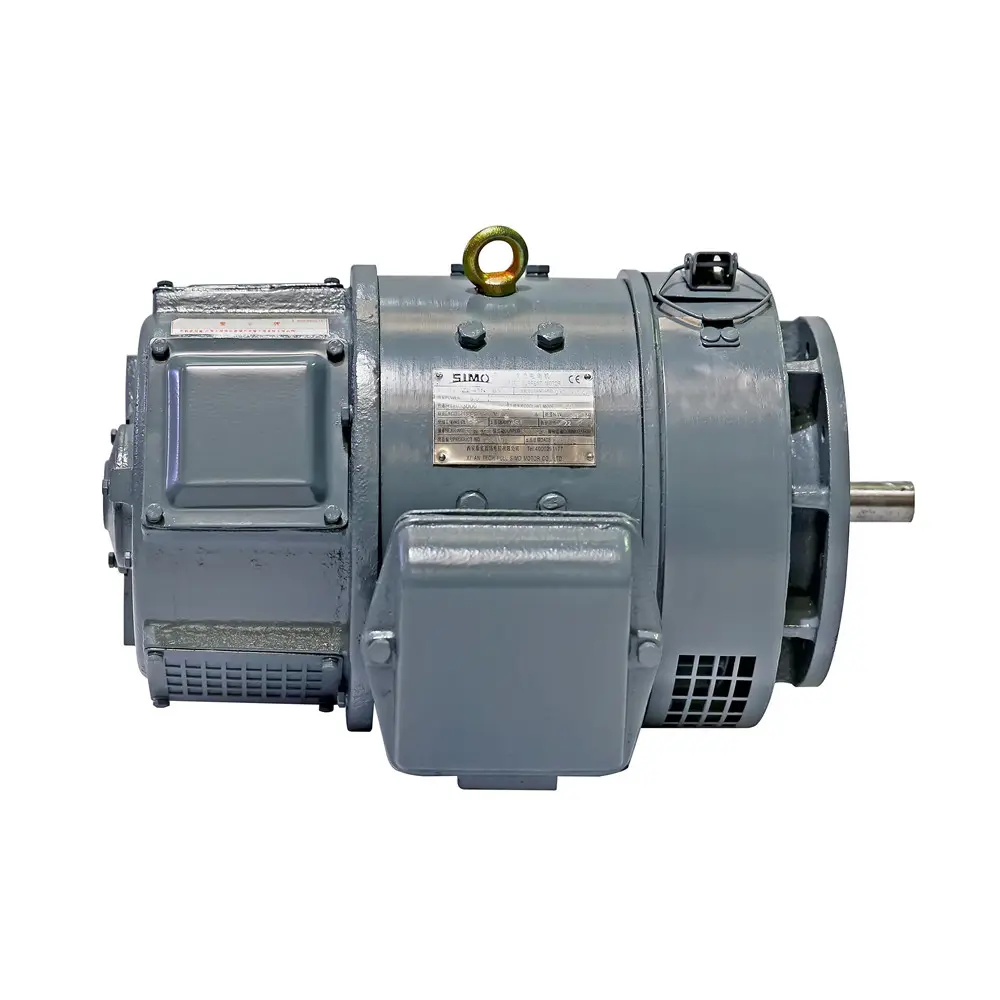

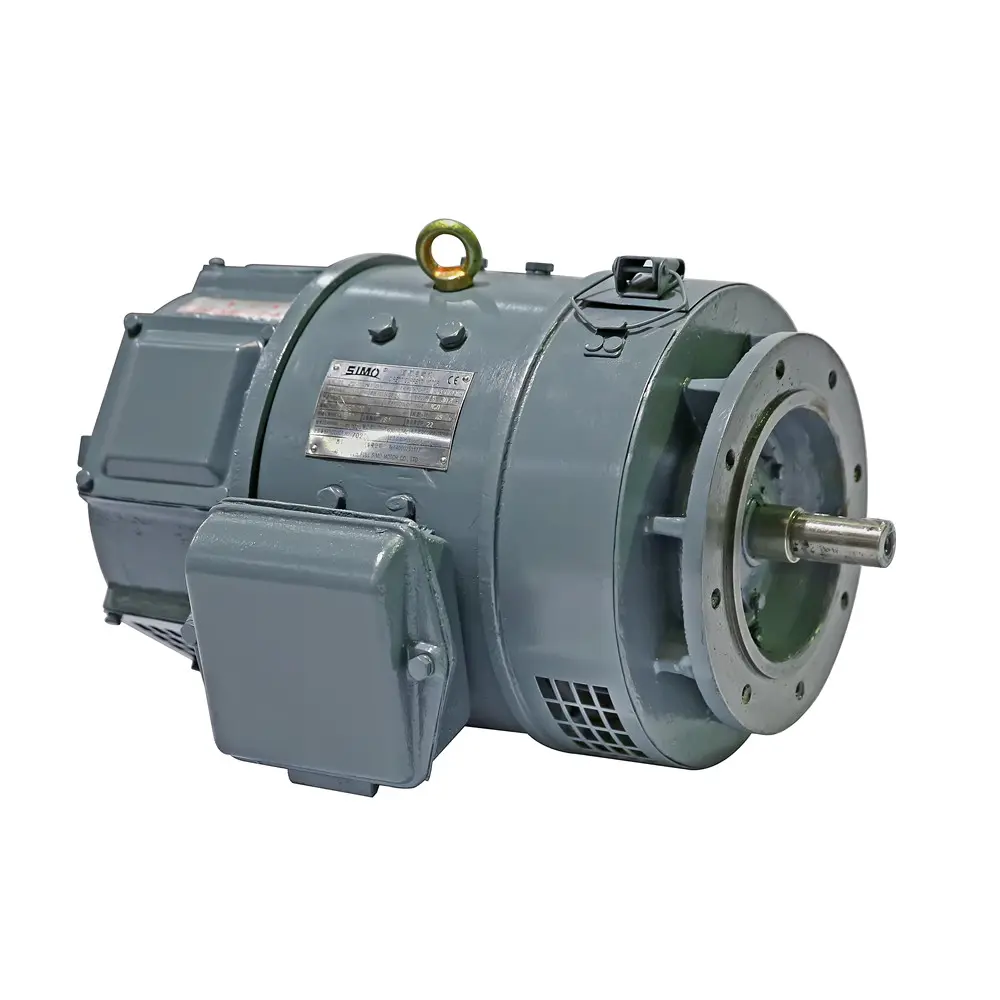

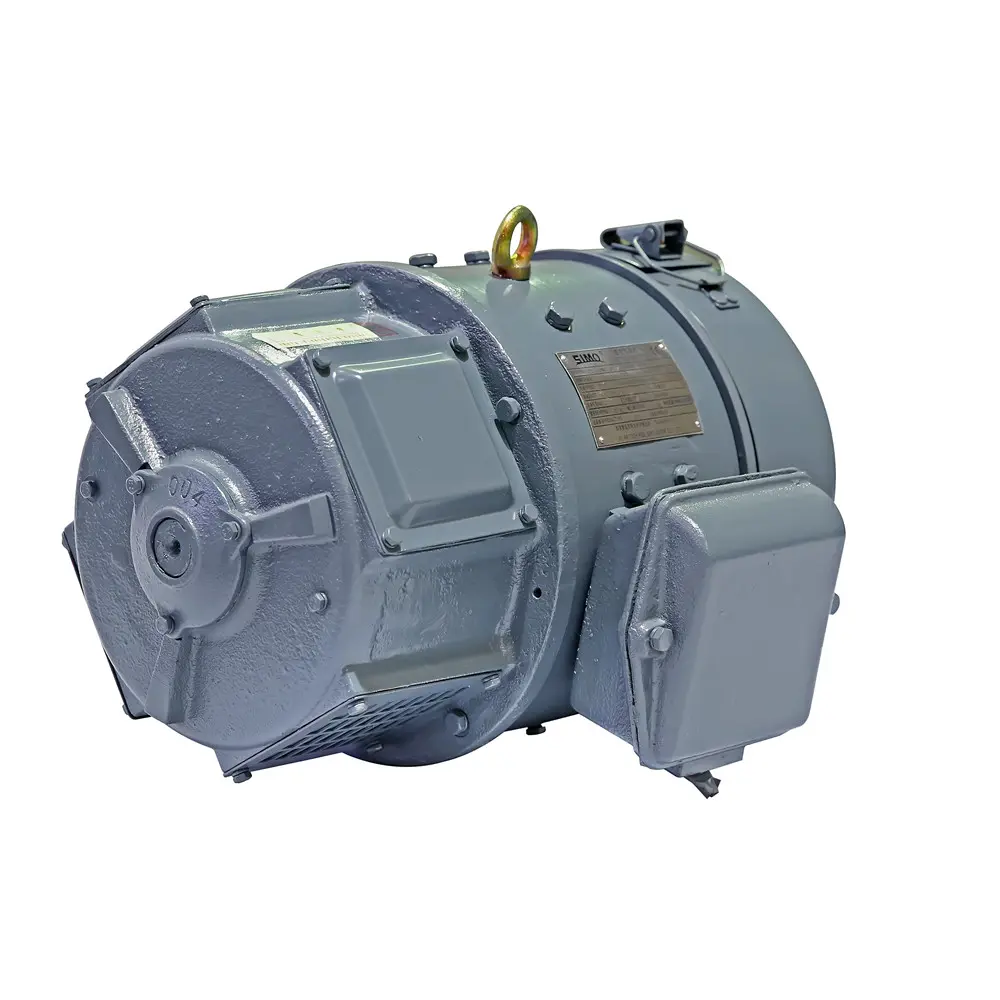

LT SIMO Motor Z2 series small DC motors are divided into three models: DC motors, DC generators, and DC voltage-regulated generators, which are suitable for general normal working environments.

Send Inquiry

Product Description

Products Details

Z2 motor is suitable for normal working environment. The motor is used for general transmission, the generator is used for general DC power supply, and the voltage regulating generator is used to charge the battery pack. (It can also be used as a generator) The motor can be driven by V-belt, meshing gear or elastic coupling to prevent the motor bearing from axial thrust.

Basic parameters

Frame size	1-11
Power	0.4-200kW
Voltage	160V/400V/440V/660V/380V
Rated Power	3000/1500/1000/500rpm
Protection Grade:	IP23/IP44
Cooling Method	IC06/IC17/IC37/ICW37A86
Excitation method	Separate Excitation/ Shunt Excitation
Insulation	F
Service	S1
Ambient temperature	-15 °C ~ + 40 °C
Environment	indoors
Altitude	≤1000m
Bearing	Chinese/SKF/FAG/NSK available
Mounting	IMB3
Temperature rise limit	80K(B)
Painting	As per client requirements

Model reference

Z4-41

Model Designation

Z2-DC motor

Series Type

Height of frame 4mm

Number of cores

Frequently Asked Questions

What are the primary applications of the Z2 DC motor?

The Z2 motor is designed for general transmission. Its generator version is suitable for general DC power supply, while its voltage regulating generator version can be used to charge battery packs.

What methods can be used to drive the Z2 motor?

The motor can be driven by a V-belt, meshing gear, or elastic coupling. These driving methods are designed to prevent the motor bearing from axial thrust.

What power and voltage specifications does the Z2 motor support?

The power range for the Z2 series is 0.4-200kW, with voltage configurations including 160V, 400V, 440V, 660V, and 380V.

What are the environmental limits for operating the Z2 motor?

The Z2 motor is intended for indoor use under normal working environments. It operates optimally at ambient temperatures between -15 °C and +40 °C, and altitudes up to 1000m.

What brands of bearings are available for the Z2 motor?

The Z2 motor can be equipped with standard Chinese bearings or premium options from SKF, FAG, and NSK depending on your project requirements.

What cooling and insulation standards are applied?

It features Class F insulation, a service duty of S1, and supports multiple cooling methods including IC06, IC17, IC37, and ICW37A86.
